• Equipment
    Heat Exchangers
    Heat Exchanger - Shell & Tube

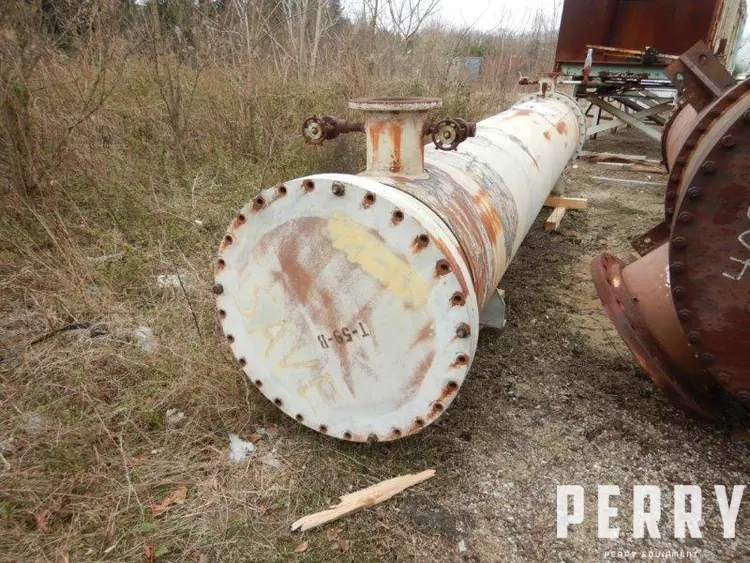

    2530 Sq.Ft. Carbon Steel Horizontal Shell and Tube Heat Exchanger

    2530 Sq.Ft. Carbon Steel Horizontal Shell and Tube Heat Exchanger

    Have one to sell?
    +44 1325 315 111
    ppel@perryprocess.co.uk
    ConditionUsed
    1 available
    Have one to sell?

    Overview

    Type:
    Heat Exchanger - Shell & Tube
    Manufacturer:
    ROARK ENTERPRISES
    Model:
    2530 Sq.Ft.
    Stock #:
    762V-7726
    Country:
    United States

    Description

    Used Roark Enterprises 2530 square foot carbon steel horizontal shell and tube heat exchanger. Rate 75 PSIG @ 150°F shell and tube side. (806) 3/4" diameter X 16' long .085" GA tubes.

    Surface Area2,530 ft²235 m²
    Material of ShellCarbon SteelCarbon Steel
    Material of TubesCarbon SteelCarbon Steel
    Shell Side Max. Pressure75 PSI5 bar
    Shell Side Max. Temp.350°F177°C
    Tube Side Max. Pressure75 PSI5 bar
    Tube Side Max. Temp.350°F177°C
    Tube Diameter1"19 mm
    Number of Tubes806806

    Overview

    Type:
    Heat Exchanger - Shell & Tube
    Manufacturer:
    ROARK ENTERPRISES
    Model:
    2530 Sq.Ft.
    Stock #:
    762V-7726
    Country:
    United States

    Description

    Used Roark Enterprises 2530 square foot carbon steel horizontal shell and tube heat exchanger. Rate 75 PSIG @ 150°F shell and tube side. (806) 3/4" diameter X 16' long .085" GA tubes.

    Specifications

    Metric

    Surface Area235 m²
    Material of ShellCarbon Steel
    Material of TubesCarbon Steel
    Shell Side Max. Pressure5 bar
    Shell Side Max. Temp.177°C
    Tube Side Max. Pressure5 bar
    Tube Side Max. Temp.177°C
    Tube Diameter19 mm
    Number of Tubes806
