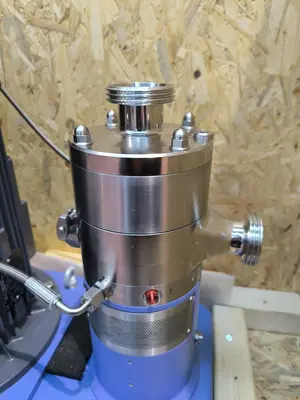

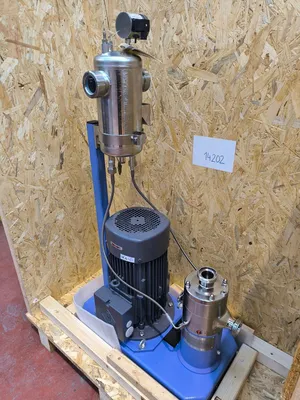

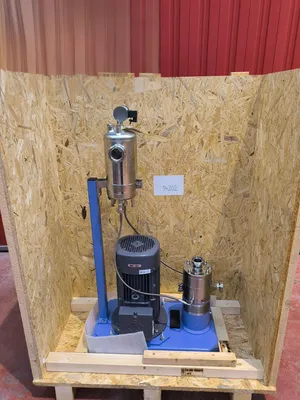

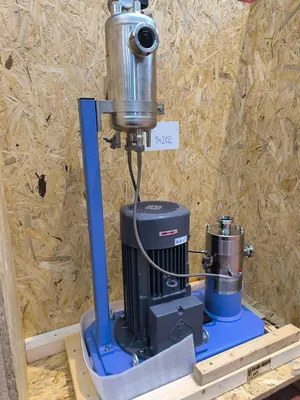

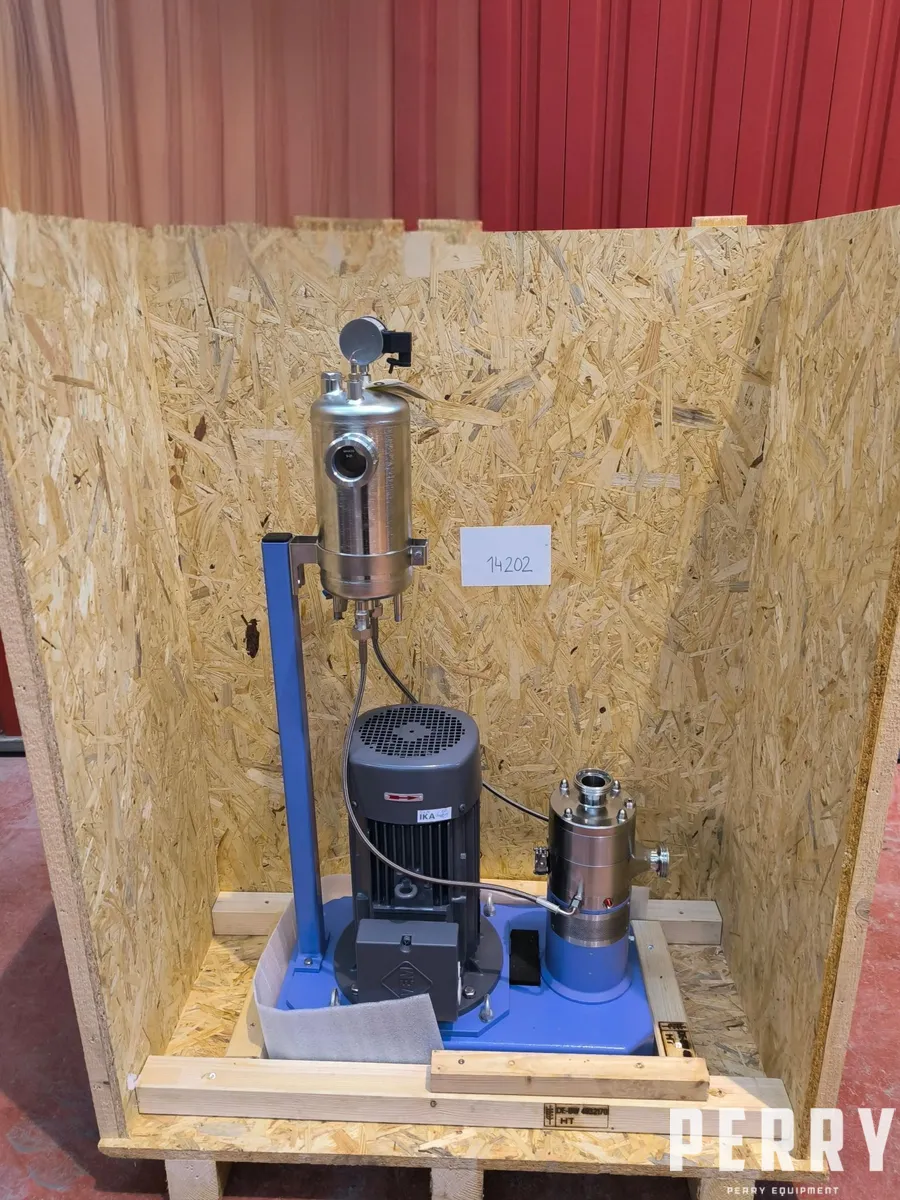

INLINE HOMOGENIZER IKA DRS 2000/05 STAINLESS STEEL 316

Description

High-shear industrial mixer for continuous processes

The DISPAX-REACTOR® is a new high-speed mixing, dispersion and homogenization unit, designed for continuous processes in the chemical, pharmaceutical, cosmetic and food industries. It is particularly suitable for demanding applications requiring high shear, precise process control and compatibility with corrosive products.

Key technical features
Rotor speed: 10,800 rpm (50 Hz)

Peripheral speed: 40 m/s

Maximum flow rate: approx. 2,500 l/h (water at 20 °C)

Year 2024

Product contact materials
AISI 316L / AISI 316Ti stainless steel

FPM elastomers (FDA)

Design suitable for corrosive products and hygienic processes

Professional sealing system
Double-acting mechanical seal

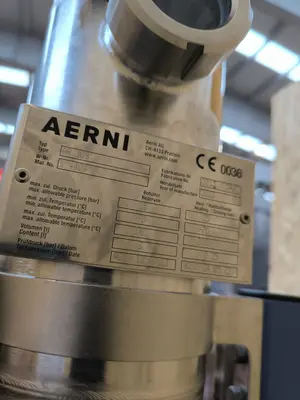

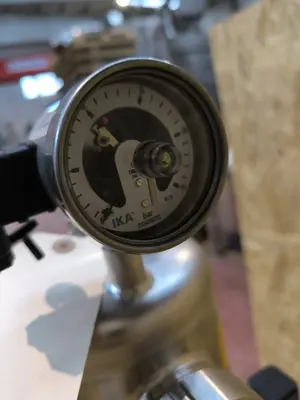

Pressurized barrier fluid system

Continuous cooling and lubrication of the seal

Enhanced safety, reduced maintenance and long service life

Operating temperature and pressure
Product temperature:

Up to 120 °C (FPM / EPDM seals)

Up to 160 °C (FFPM / FEP seals)

Minimum temperature: down to -20 °C

Operating pressure: -1 to +16 bar

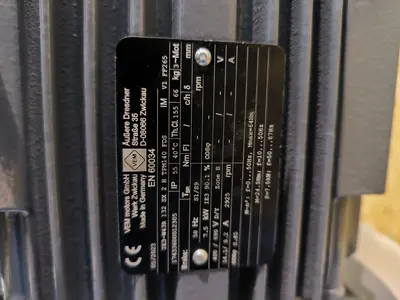

Motor and certifications
7.5 kW three-phase motor

Power supply: 400 / 690 V – 50 Hz

Protection rating: IP55

Insulation class: F

Prepared for frequency inverter (20–60 Hz)

ATEX certification: Ex II 2G Ex de IIC T4 Gb

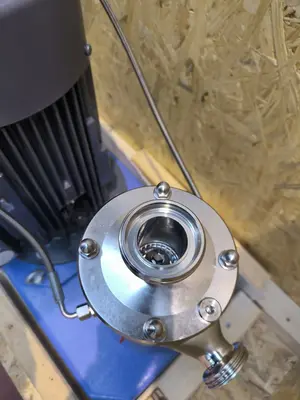

Process connections
Product inlet: DIN 11851 – DN40
Product outlet: DIN 11851 – DN25

Material
316/316L stainless steel

Technical features

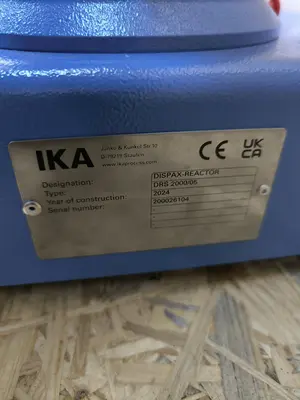

Model: DRS 2000/05
Year of manufacture: 2024
