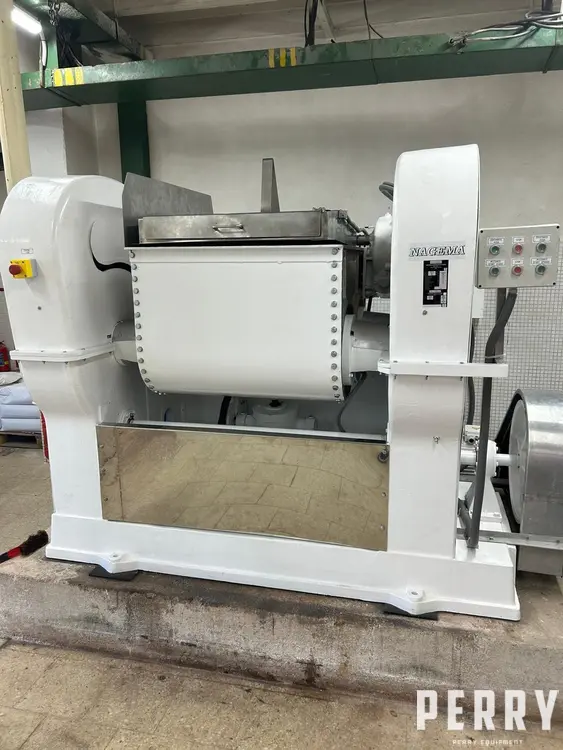

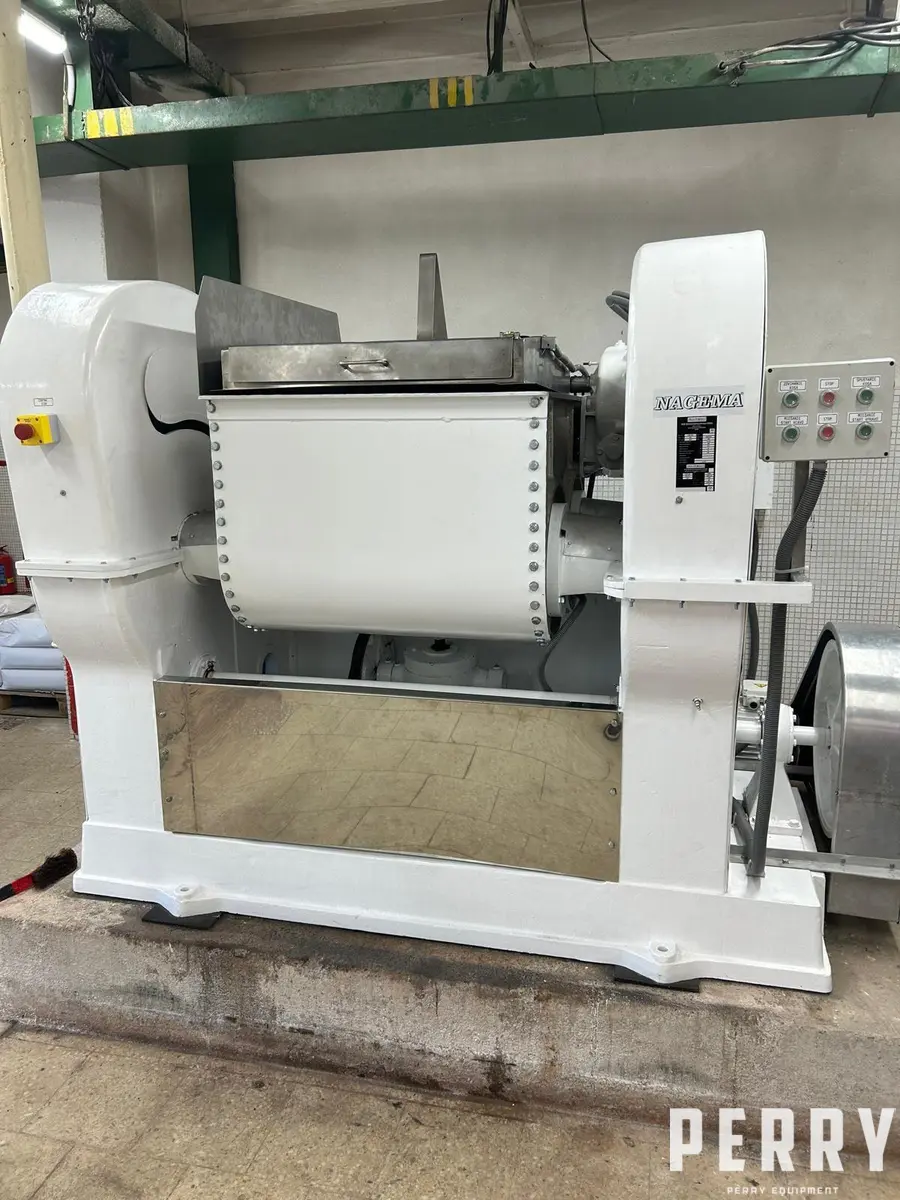

400 L carbon steel sigma blade double arm mixer by NAGEMA type DMK 400

Description

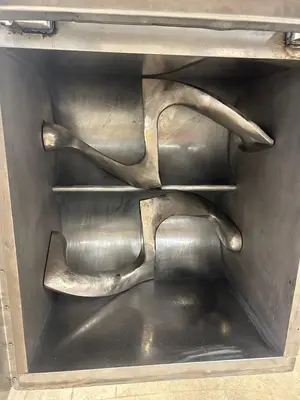

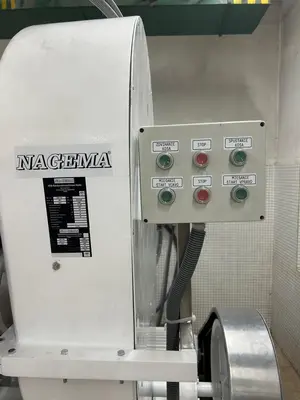

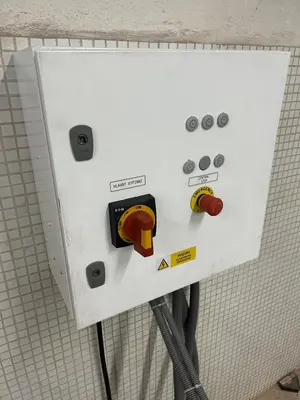

Reconditioned carbon steel sigma blade double arm mixer by NAGEMA (Germany) type DMK 400. Working capacity 400 litre (105 gallon) and total capacity 550 litres. Internal dimensions of stainless steel mixing chamber 885 mm wide x 1005 mm long x 660 mm deep. The sides of the mixing chamber are nickel-plated. Carbon steel SIGMA-type agitators is nickel plated and driven by a gearbox and an electric motor with a power of 15 kW, 730 rpm, 50 Hz. Tilt unloading is driven by a gearbox and an electric motor with a power of 1.1 kW. Stainless steel cover is opened by a gearbox and an electric motor with a power of 0,18 KW, 220/380 V, 50 Hz. Includes control panel. Shipping dimensions of mixer: length 3150 mm x width 1400 mm x height 2000 mm, weight 3625 kg.
