Used 4,450 mm (175.2") wide Beloit Paper Machine 80–200 gsm

Description

Used 4,450 mm (175.2") wide Liner & Fluting Paper Machine — Black Clawson Line
Trim / Deckle (paper width): 4,450 mm (175.2")
Grades: Testliner, Fluting, Interkraft (typical furnish 100% RCF; Interkraft ~70% RCF / 30% virgin)
Basis weight range: ~80–200 gsm

Design operating speeds:
80–100 gsm: ~450–500 m/min (1,476–1,640 fpm)
120–200 gsm: ~280–500 m/min (919–1,640 fpm)
Nominal production: ~250–400 t/day (grade-dependent)
Max jumbo (reel) diameter: 2,260 mm (88.9")

Forming & Wet End
Headbox: Beloit pressure headbox with perforated rolls (slice width ~4,780 mm / 188.2")

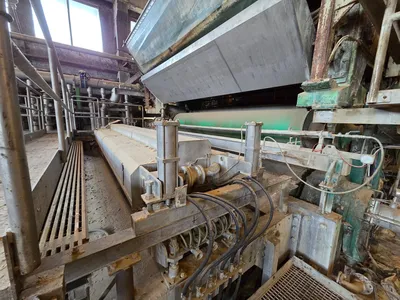

Former / Wire section: Black Clawson fourdrinier with steam box and wire suction roll

Approach / Machine stock:
Machine chest MC4 ~30 m³; mixing tank RK2 ~50 m³ with agitators

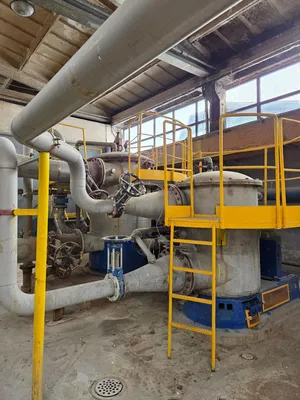

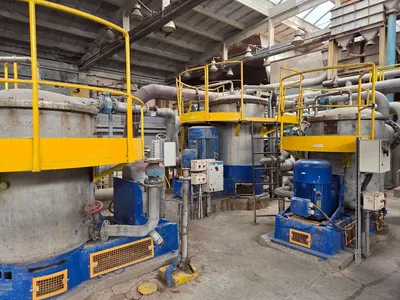

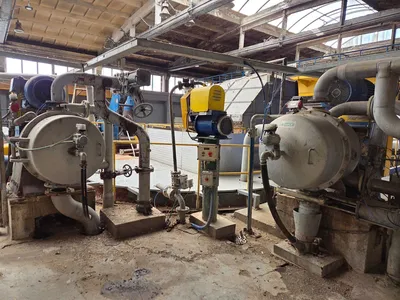

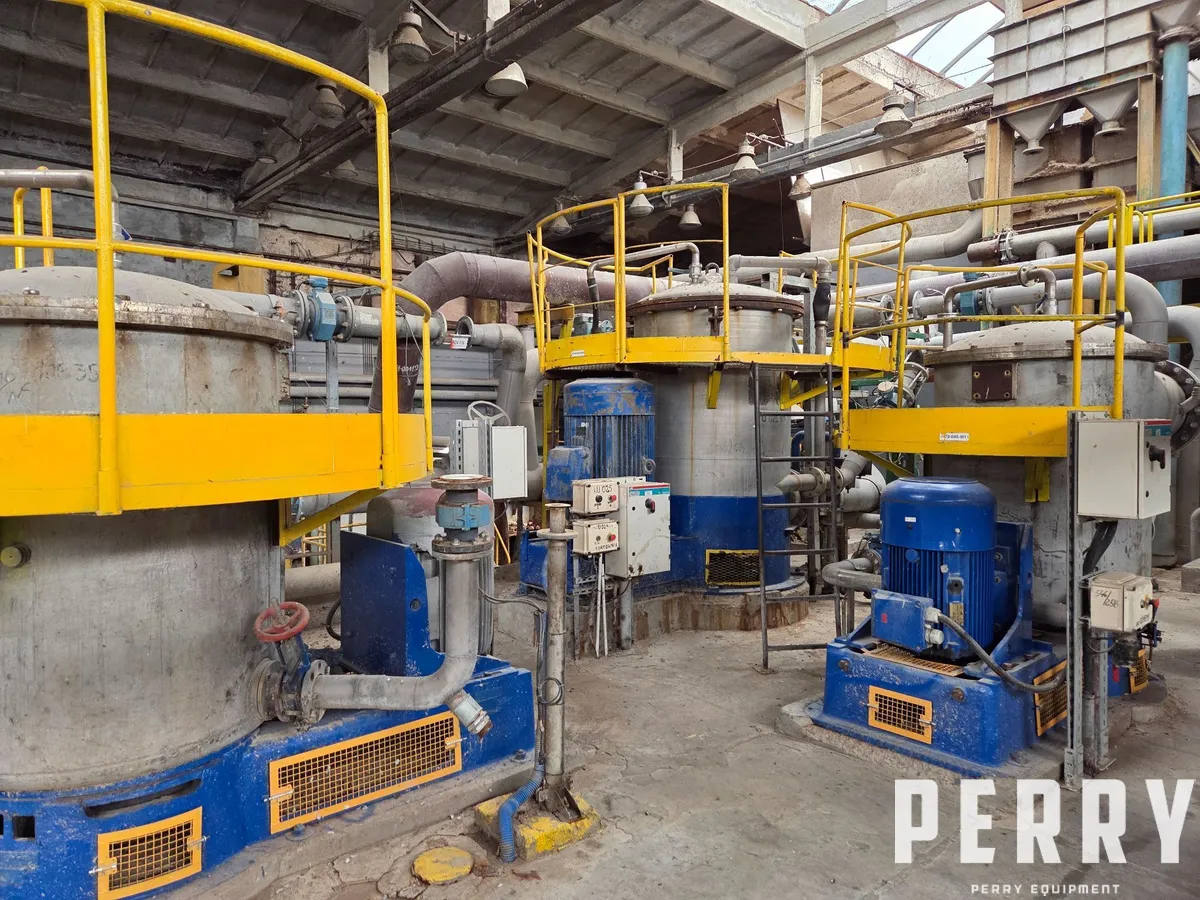

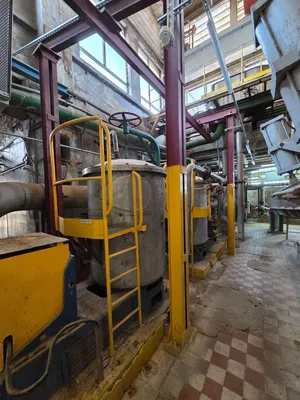

Pressure screens: CN14Bs (1st stage), CN8As (2nd stage)
Vibrating sorter: DJ150
Refiners: ST860 (typ. 60–250 t/d range)

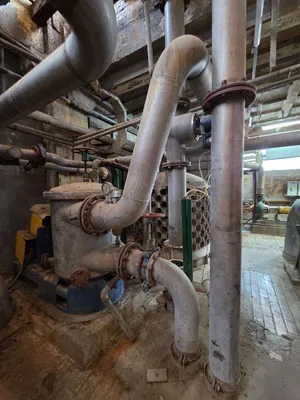

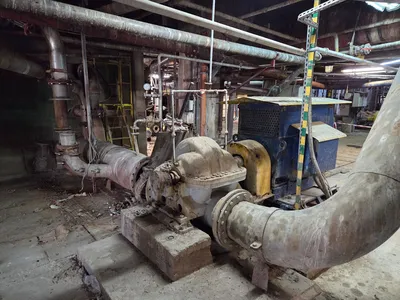

Fan pump: ZRR40 (~36,500 l/min; ~250 kW)

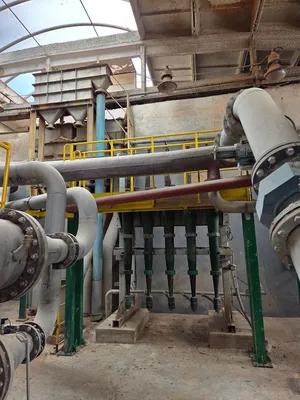

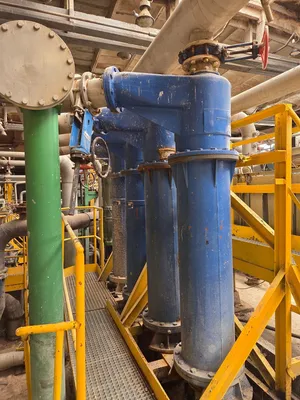

Radiclone pumping stages detailed in spec

Press & Surface Application
1st Press: Black Clawson suction press (pressure shaft modernized, blind-drilled)
2nd Press: Alimand blind-drilled press
Size Press: PMP pond size press (two rolls: steel / rubber)
Starch / Glue Kitchen: Amylum
Infusion / Film application: Beloit (as listed)

Drying, Finishing & Reel

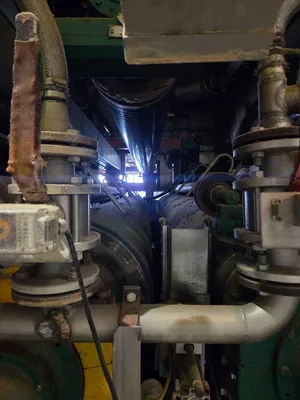

Dryer section: Multi-cylinder dryer with ProJet fabric cleaners (1st dryer group) and V.I.B. moisturiser
Calender: Valmet Soft-Nip, 2-roll

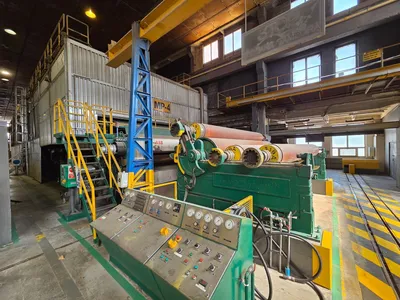

Reel / Rewinder: Black Clawson (Auto-Flyte 36 reel; Black Clawson rewinder)
Cutting machine: KL-63
