    3,000 Gallon Stainless Steel Reactor

    3,000 Gallon Stainless Steel Reactor

    Have one to sell?
    +44 1325 315 111
    ppel@perryprocess.co.uk
    ConditionUsed
    1 available
    Have one to sell?

    Overview

    Type:
    Reactors & Kettles - Stainless Steel
    Manufacturer:
    NORWALK FAB
    Model:
    3,000 GALLON
    Stock #:
    ZG63931

    Description

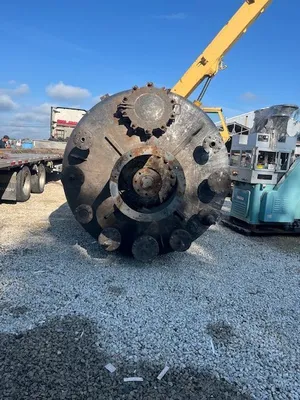

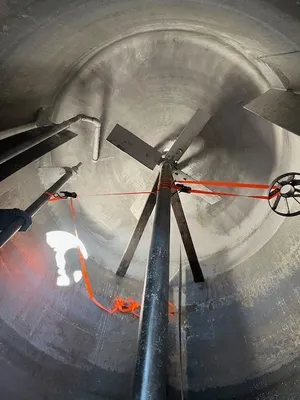

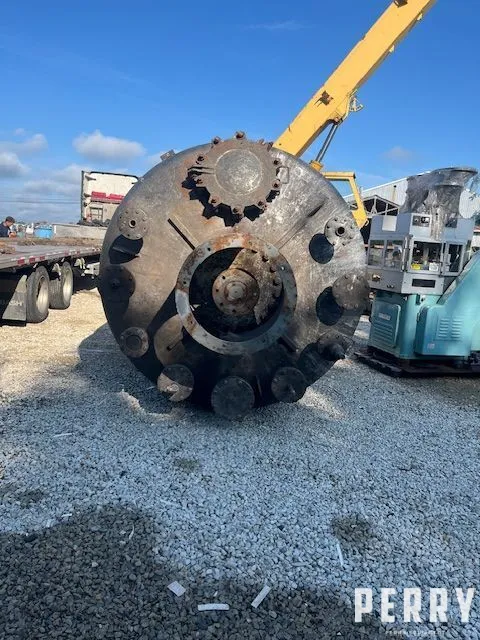

    Used approximately 3,000 gallon 316 stainless steel half-pipe coil jacketed reactor. Rated 60 psi @ 600°F internal. Half-pipe coil jacket rated 90 psi @ 600°F. Dished top and bottom heads. Center-mounted top drive with 4-blade pitched turbine agitator. (2) baffles. Center bottom outlet. On legs. Built by Norwalk Fab. 25 HP motor and gearbox. NB stamped.

    Capacity (gal/l)3,000 gal11,356.2 L
    Material of construction316 stainless steel316 stainless steel
    Type Of HeadsDishedDished
    Internal Pressure60 PSI4.1 bar
    Jacket Pressure90 PSI6.2 bar
    Internal Temperature600°F315.6°C
    Type of stainless316316
    Legs/LugsOn legsOn legs
