    3,500 Gallon 316 Stainless Steel Reactor

    3,500 Gallon 316 Stainless Steel Reactor

    Have one to sell?
    +44 1325 315 111
    ppel@perryprocess.co.uk
    ConditionUsed
    1 available
    Have one to sell?

    Overview

    Type:
    Reactors & Kettles - Stainless Steel
    Manufacturer:
    CHECK GARDIN
    Model:
    3,500 GALLON
    Year:
    1986
    Stock #:
    ZG63932
    Country:
    United States

    Description

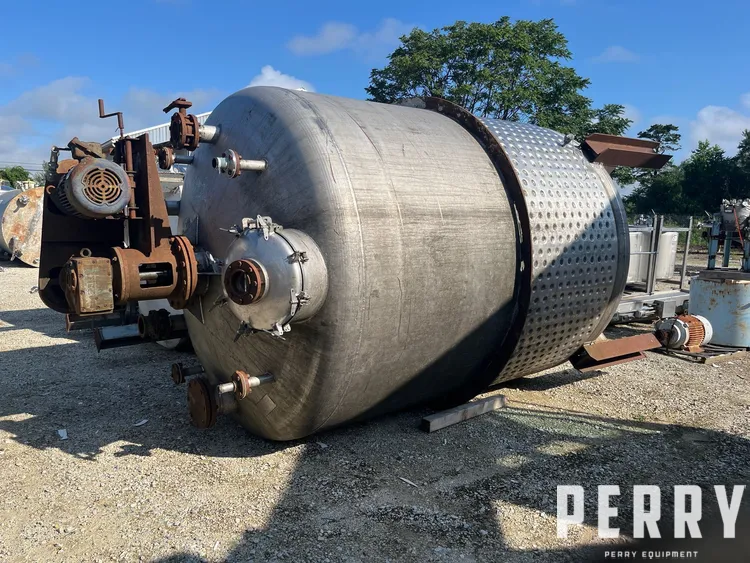

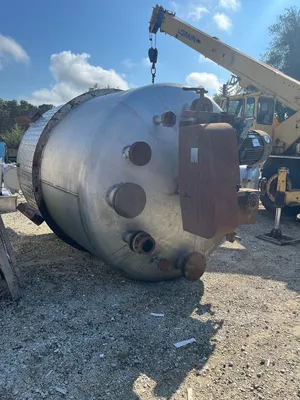

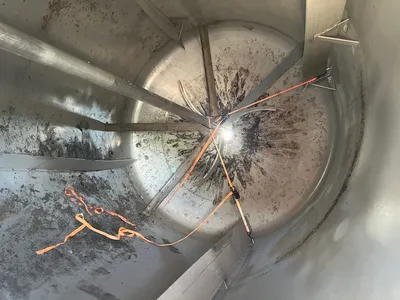

    Used approximately 3,500 gallon 316 stainless steel reactor. Rated 50/full vaccum @ 350°F. Dimple jacket on bottom 1/2 side wall rated 100 psi @ 350°F. Dished top and bottom. 15 hp center-mounted top drive. Top manway. Center bottom outlet. On legs. Built by Check Gardin in 1986.

    Capacity (gal/l)3,500 gal13,248.9 L
    Material of constructionStainless SteelStainless Steel
    Type Of HeadsDished top and bottomDished top and bottom
    Internal Pressure50 PSI3.4 bar
    Jacket Pressure100 PSI6.9 bar
    Internal Temperature350°F176.7°C
    Type of stainless316316
    Legs/LugsOn legsOn legs
