    Norwalk Fab 3,000 Gallon 316 Stainless Steel Reactor

    Norwalk Fab 3,000 Gallon 316 Stainless Steel Reactor

    Have one to sell?
    +44 1325 315 111
    ppel@perryprocess.co.uk
    ConditionUsed
    1 available
    Have one to sell?

    Overview

    Type:
    Reactors & Kettles - Stainless Steel
    Manufacturer:
    NORWALK FAB
    Model:
    3,000 GALLON
    Stock #:
    ZG6931

    Description

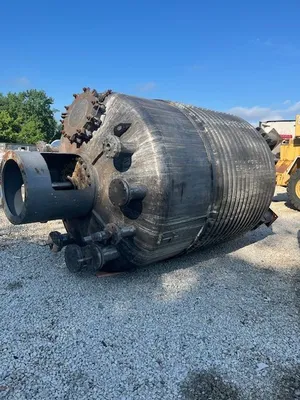

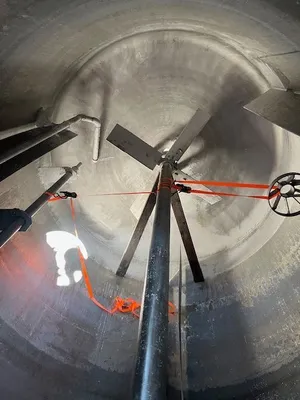

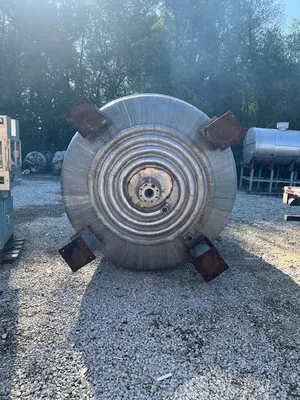

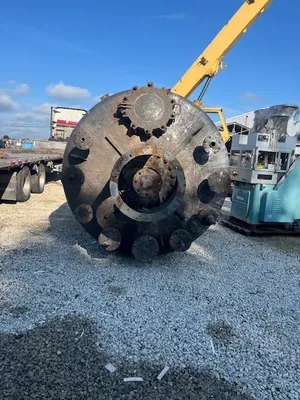

    Used approximately 3,000 gallon 316 stainless steel half-pipe coil jacketed reactor. Rated 60 psi @ 600°F internal. Jacket rated 90 psi @ 600°F. Dished top and bottom heads. Half-pipe coil jacket. Center-mounted top drive with 4-blade pitched turbine agitator. (2) baffles. Center bottom outlet. On legs. 25 HP motor and gearbox. NB stamped. Built by Norwalk Fab.

    Capacity (gal/l)3,000 gal11,356.2 L
    National Board No.NB stampedNB stamped
    Material of constructionStainless SteelStainless Steel
    Type Of HeadsDishedDished
    Internal Pressure60 PSI4.1 bar
    Jacket Pressure90 PSI6.2 bar
    Internal Temperature600°F315.6°C
    Type of stainless316316
    Legs/LugsOn legsOn legs
