7MW Steam Turbine With Generator Set Never Installed

Description

Unused, Never Installed Elliot 7 MW Steam Turbine with Hyundai-Ideal Electric Generator Set
Manufacturer: Elliot
Model: 2 DYR6
Multi-stage steam turbine
Hyundai Ideal Electric brushless synchronous generator
Output: 6.595 kW
Speed: 18,000 rpm
6,600 volts, 60 Hz
Year: 2016
Never installed, unused in boxes with spare parts

Elliot multi-stage steam turbine
Model: 2 DYR6
Shop Order No.: F502704; Go. No. F15040 (2016)
Operating speed (based on generator output): 710 rpm
Max. allowed speed: 5,460 rpm; min. 5,286 rpm
Trip speed: 6,006 rpm
Max. steam inlet temperature: 400°C
Max. steam pressure: 2,200 kg/cm²g
Potential max. power: 7,257 kW
Max. nozzle steam flow: 45,080 kg/hr
Weight: 19,028 kg

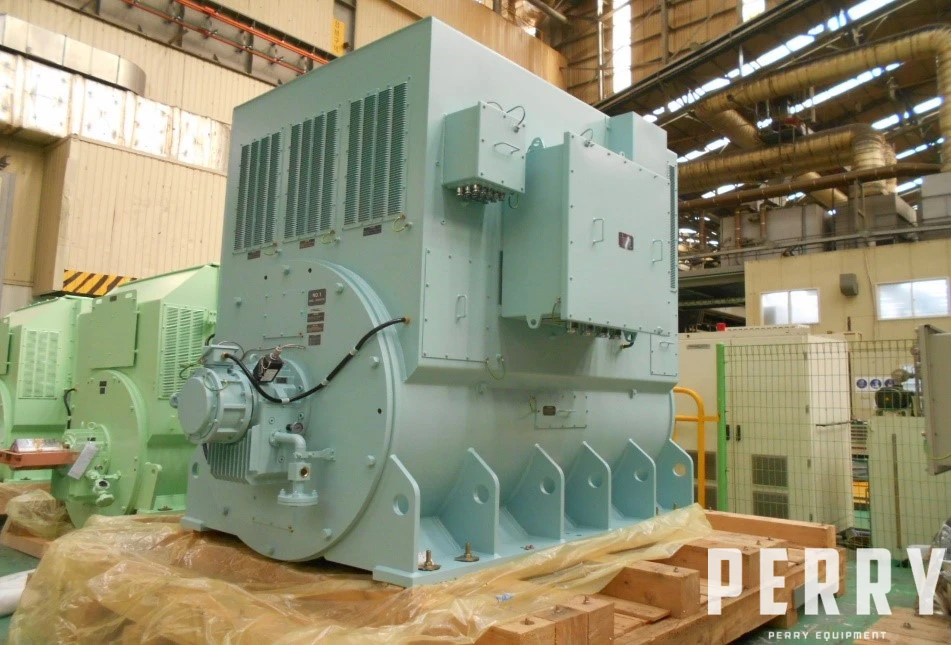

Brushless synchronous generator
Manufacturer: Hyundai-Ideal Electric
Output: 6.595 kW-AP-6,600 volts; 60 Hz
Weight: 20,000 kg
Start-up and 2 years spare parts
