    601,000 Litre Stainless Steel Mixing Vessel, 6,800mm Dia x 16,550mm Stainless Side.

    601,000 Litre Stainless Steel Mixing Vessel, 6,800mm Dia x 16,550mm Stainless Side.

    Have one to sell?
    +44 1325 315 111
    ppel@perryprocess.co.uk
    ConditionUsed
    5 available
    Have one to sell?

    Overview

    Type:
    Stainless Steel Tanks
    Manufacturer:
    Nakkila
    Model:
    601,000 Litres
    Stock #:
    VRG2093-02
    Country:
    Finland

    Description

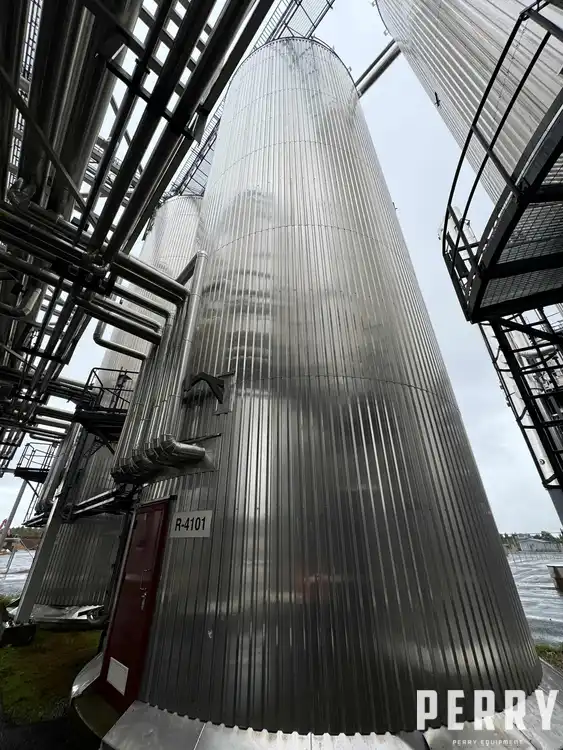

    Little used Nakkila Works Oy approximately 601,000 litre stainless steel (1.4162 & 1.4307) vertical mixing vessels. Last used as fermentation vessels. Unit measures approximately 6,800 mm diameter x 16,550 mm straight side. Unit has welded dished top and welded cone bottom heads. Manufactured to hygienic design. Internal rated atmospheric working pressure at 35 °C. External is insulated and clad. Includes side-entry stainless steel agitator with drive/motor. Vessel is mounted on stainless steel skirt.

    Capacity (gal/l)158,503 gal599,999.2 L
    Type Of HeadsWelded Dished Top and Welded Cone BottomWelded Dished Top and Welded Cone Bottom
    Vertical/HorizontalVerticalVertical
    Type of stainless1.4162 & 1.43071.4162 & 1.4307
    Legs/LugsStainless Steel SkirtStainless Steel Skirt
    Dimensions6,800mm diameter x 16,550mm straight side6,800mm diameter x 16,550mm straight side
