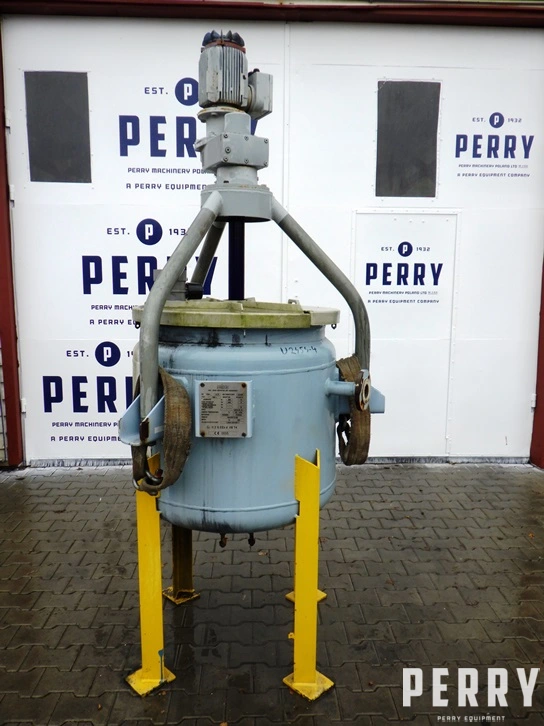

250 Litre Vertical Glass Lined Jacketed Mixing Tank Lampart Type 250L

Description

Used, vertical, glass-lined jacketed mixing tank made by Lampart (Hungary), type 250L. Working volume is 250 litres. Total volume is 265 litres. Inside dimensions of tank: diameter 680 mm x length of straight side of wall 730 mm. Equipped with a top-entry anchor agitator mounted on a frame. Open top design with plastic cover. The agitator is driven by an explosion-proof electric motor with a power of 1.5 kW, 1405 rpm, with a gearbox. Agitator operates at 52 rpm. The tank has a cooling/heating jacket with a capacity of 75 litres and can operate at pressures up to 6 bar within a working temperature range from -25 to 200 degrees Celsius. Central bottom discharge; discharge valve not included. Unit is mounted on four legs.
