500 L Vertical Stainless Steel Storage Tank

Description

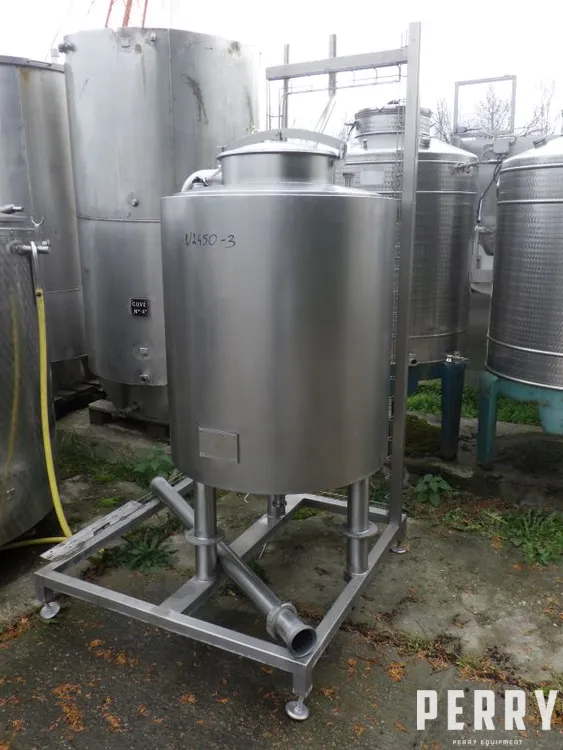

Used vertical stainless steel storage tank with a volume of 500 litres. The tank has an internal diameter of 800 mm and a straight wall length of 1020 mm. The top is welded, with a central inspection manway measuring 435 mm in diameter, and a bolted lid. The bottom is welded, slightly conical, with a central discharge outlet. Both the bottom and side walls are insulated and clad in stainless steel. The tank is rated for operation at a pressure of 0 bar and temperatures up to 85 °C. Made from AISI 304 material. The tank is mounted on three stainless steel legs and a supporting frame. Last used in the food industry.
