Used Rotary Valve By Rotolok Type 125 RVCSS01B

Description

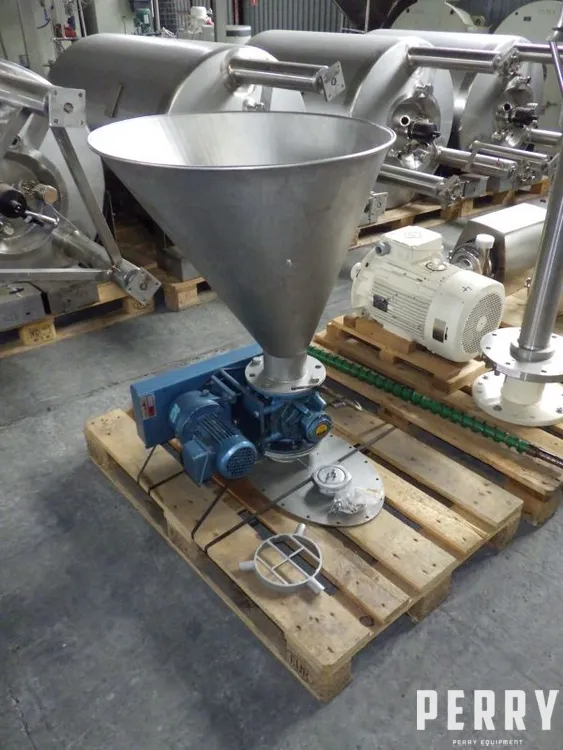

Used stainless steel contact parts rotary valve by Rotolok (UK), type 125RVCSS01B. Inlet and outlet connections have diameters of 127 mm. The rotor is made of PVC and is chain-driven by a reducer and electric motor 0.37 kW, 1380 rpm, 220-415 V, 50 Hz. Operating speed up to 25 rpm. Output depends on product and rotation speed, and can reach up to 1.3–1.9 m³/h. The valve has a stainless steel conical hopper with an internal diameter of 670 mm, equipped with safety bars. The valve is bolted to a stainless steel supporting plate. Last used in the food industry.
