    70 l Total Volume Vertical Stainless Steel Storage Tank With Conical Bottom

    70 l Total Volume Vertical Stainless Steel Storage Tank With Conical Bottom

    Have one to sell?
    +44 1325 315 111
    ppel@perryprocess.co.uk
    ConditionUsed
    1 available
    Have one to sell?

    Overview

    Type:
    Stainless Steel Tanks
    Stock #:
    U2441-9
    Country:
    Poland

    Description

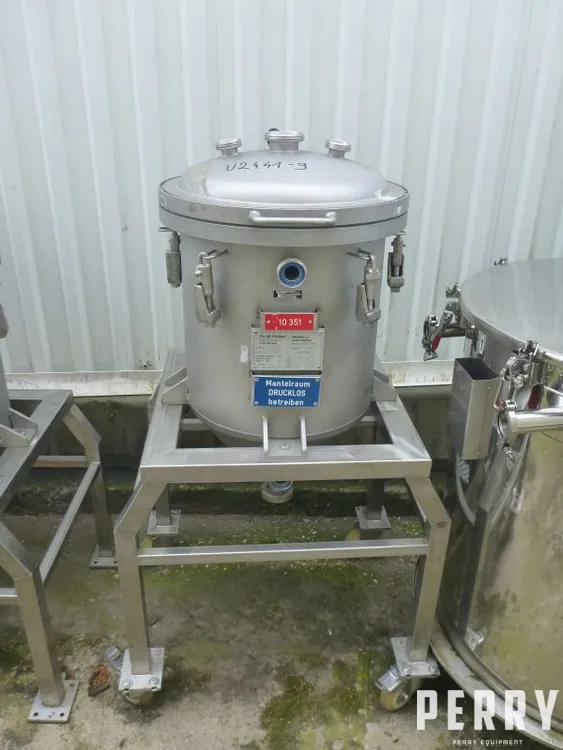

    Used vertical stainless steel storage tank with a total volume of 70 litres. Internal diameter 400 mm x length of straight side of wall 420 mm. Conical bottom with central discharge outlet. Height of cone 240 mm. Top ellipsoidal, mounted on clamps. Tank is designed to operate at a pressure of up to 2 bar at 100 °C. Mounted on four lugs and a mobile stainless steel frame.

    Capacity (gal/l)18.5 gal70 L
    Type Of HeadsTop elipsoidalTop elipsoidal
    Vertical/HorizontalVerticalVertical
    Legs/LugsFour lugs and mobile stainless steel frameFour lugs and mobile stainless steel frame
    DimensionsDiameter 400 mm x Length 420 mmDiameter 400 mm x Length 420 mm
