335 L Vertical Stainless Steel Aseptic Design Reactor Unimix Haagen & Rinau

Description

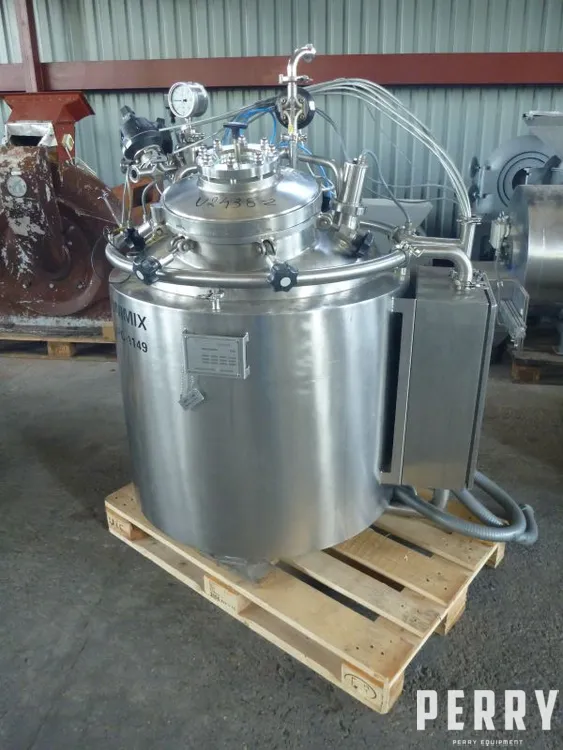

Used vertical stainless steel AISI 316L aseptic reactor with a total capacity of 335 litres by Unimix Haagen & Rinau (DE). The reactor has a working volume of 250 litres and is designed to operate at pressures ranging from -1 to 3 bar and temperatures up to 143 °C. Internal dimensions: diameter 750 mm, length of straight wall section 600 mm. The heating and cooling jacket, made of stainless steel AISI 304, has a capacity of 29 litres and is designed to operate at pressures up to 4 bar and temperatures up to 151 °C. The jacket is insulated and clad with stainless steel sheet. The reactor has a welded dished top equipped with an inspection manway, with an internal diameter of 400 mm. The reactor has a welded dished bottom, with a central discharge outlet and pneumatically operated valve. At the bottom there is a magnetic stirrer, driven by a gearbox and electric motor with a power of 0.18 kW, 1380 rpm, 50 Hz. Working rotation speed of agitator up to 184 rpm. The reactor is mounted on three legs, equipped with load cells and display. Technical documentation included.
