Custom Desgined Hot Melt Dosing System

Description

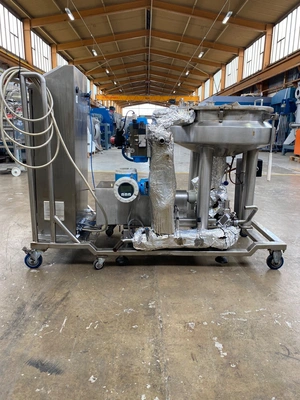

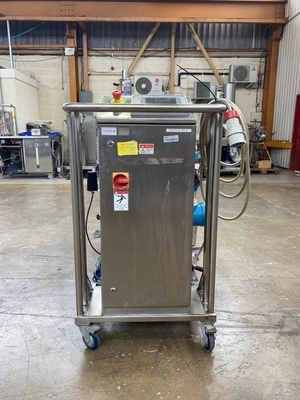

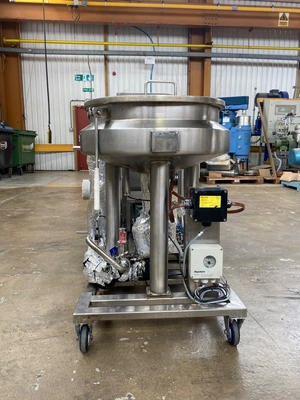

CUSTOM DESIGNED HOT MELT DOSING SYSTEM
This equipment was originally designed for the metering of viscous and molten liquids, for example to spray waxy-type materials onto detergent granules.
This type of system is used primarily in the food processing and consumer goods industries for the most challenging viscous coatings, and the technology can be applied to a wide range of food products, tablets and more.
To achieve the desired coating effects, the system provides fluid pressure at a controlled flow rate and temperature to enable liquid atomisation when linked with suitable spray nozzles, allowing effective and efficient covering of a product with minimal waste. The system can be used for almost any type of coating, ranging from light oil, sugar coatings, tablet coatings, waxy materials, and chocolate.
The system is of small production scale or pilot plant size, with a liquid output of between 12 and 98 kg/hour.

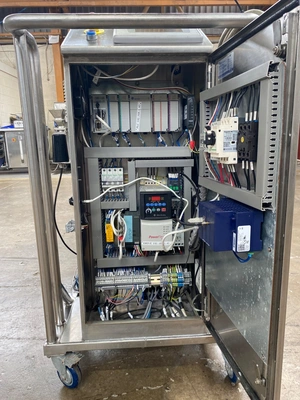

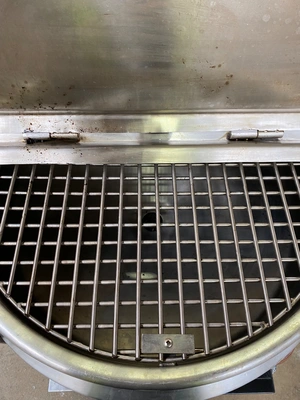

The tank is 55 cm in diameter and 27 cm in depth. The system is controlled via a colour screen HMI linked to a PLC.
