160 mm Diameter x 3495 Long EMDE model RSF 160x3495 TL Stainless Steel Screw Conveyor
Have one to sell?
ConditionUsed
1 available

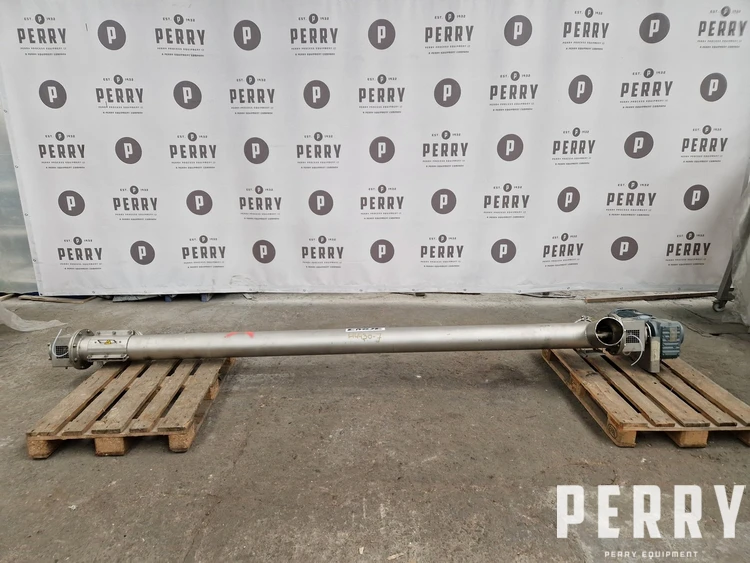

Very lightly used EMDE model RSF 160x3495 TL stainless steel screw conveyor.
- Unit measures approximately 160 mm internal diameter x 3495 mm length (flange to flange), total length is approximately 4220 mm.
- Shaft is sealed with an air-purged packing gland.
- Feeding inlet diameter 150 mm, discharge diameter 150 mm, top inspection hole diameter 140 mm, bottom rectangular inspection hole.
- The screw is driven by a SEW Eurodrive 4 kW, 1464 rpm, 50 Hz electric motor via SEW Eurodrive gearbox i = 15.19; drive is Ex rated.
- New: 2018.
