Sold

1,000 Litre Stainless Steel Vertical Mixing Tank

Stainless Steel Tanks
Model:
1,000 LITER
Stock #:
H4425-1
Country:
Czech Republic

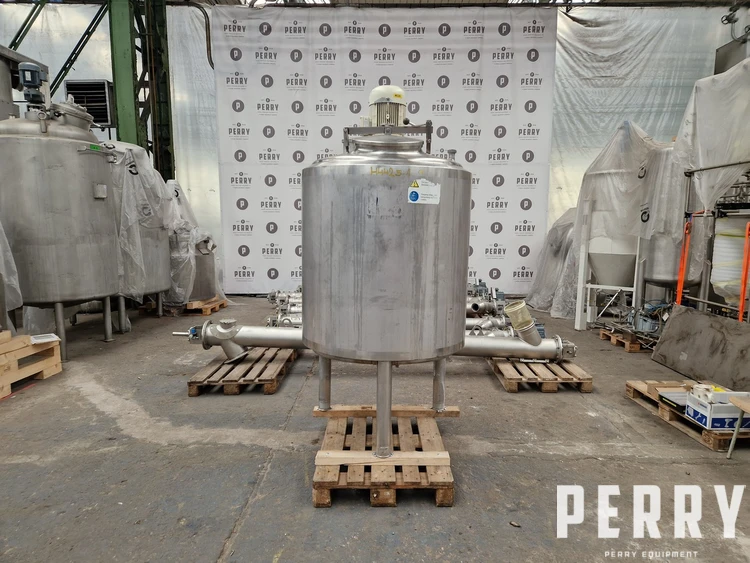

Used approximately 1000 litre capacity vertical stainless steel mixing tank. Vessel measures approx 1000 mm internal diameter x 1230 mm internal straight side x 2300 mm total height. Top entry Jongia 3-blade agitator driven by 1.5 kW electric motor. Vessel is insulated and cladded by stainless steel plate. Has welded dished top head with inspection manway 400 mm diameter and flat bottom. Side bottom discharge. Unit is mounted on (3) stainless steel legs.
Capacity1,000 L264 gal
Diameter3'1,000 mm
Height8'2,300 mm
Type Of HeadsDished top headDished top head
Vertical/HorizontalHorizontalHorizontal
Type of stainlessAISI 304AISI 304
Legs/LugsLegsLegs
DimensionsDiameter: 3 ft, Height: 7.54593 ftDiameter: 3 ft, Height: 7.54593 ft
