75 Litre Henschel FM 75 Stainless Steel Universal Mixer Granulator

Description

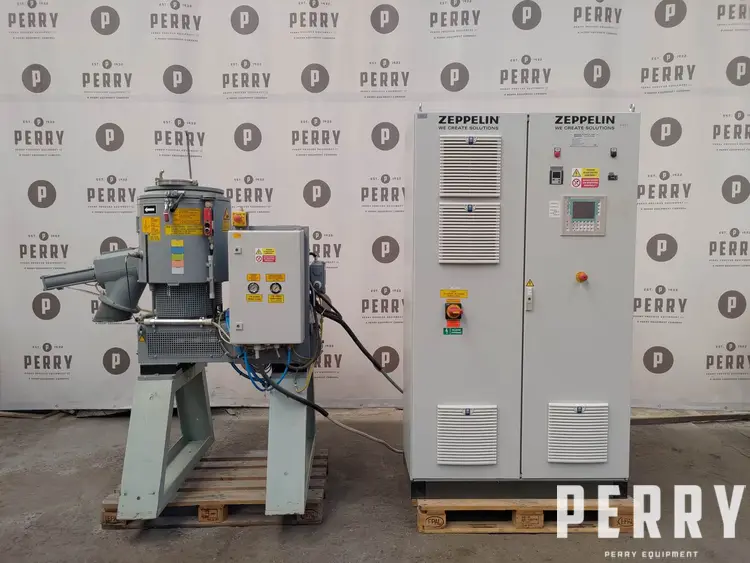

Used Henschel model FM 75 stainless steel universal mixer granulator. Mixing bowl approximately 470 mm diameter x 450 mm deep with a 75 litre capacity. The bowl has a carbon steel jacket. Outlet diameter is 175 mm. Features a hinged lid and a welded flat bottom head. The mixing blade is bottom-driven by an approximately 22 kW/400 Volt/2940 RPM/50 Hz variable speed motor, running at approximately 86–535 rpm. Includes a pneumatically operated discharge valve. The bowl and stirrers are coated with plastic spray to increase abrasion resistance. Mounted on a carbon steel base. Included switchboard with control panel.

Transport dimensions: Mixer 1700 x 1250 mm – 2200 mm high. Switchboard 2200 x 1200 mm – 700 mm high.
