6,000 Litre Hoeksma & Velt Stainless Steel (AISI 316) Vertical Mixing Tank

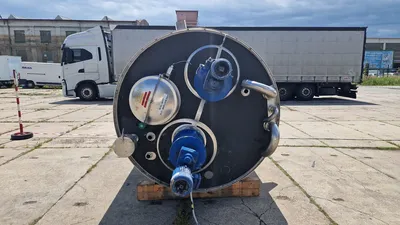

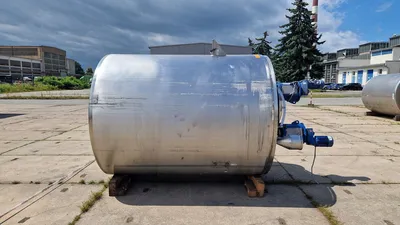

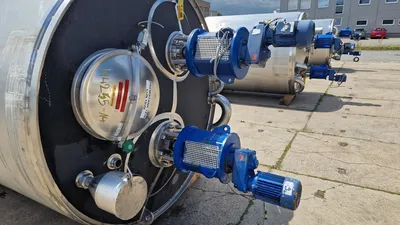

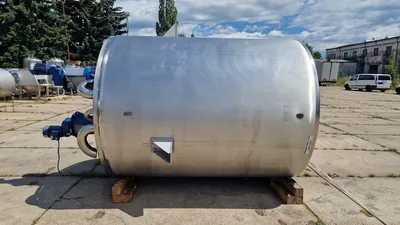

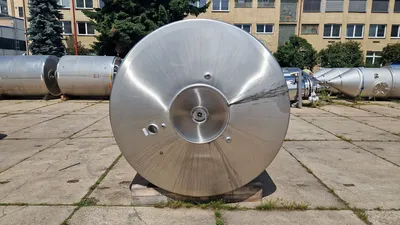

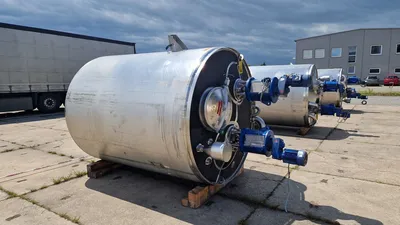

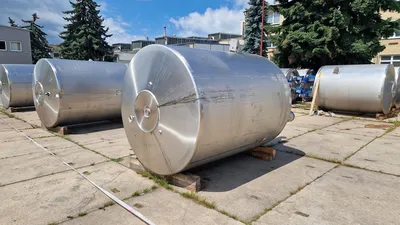

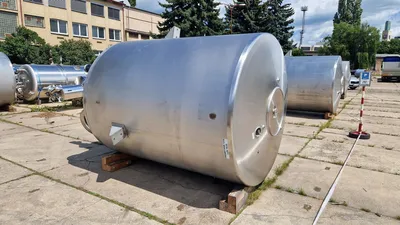

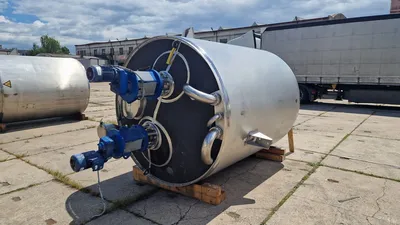

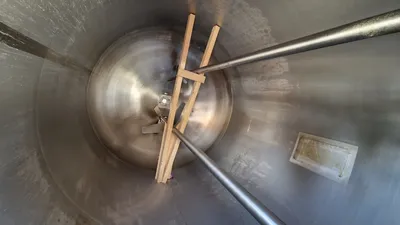

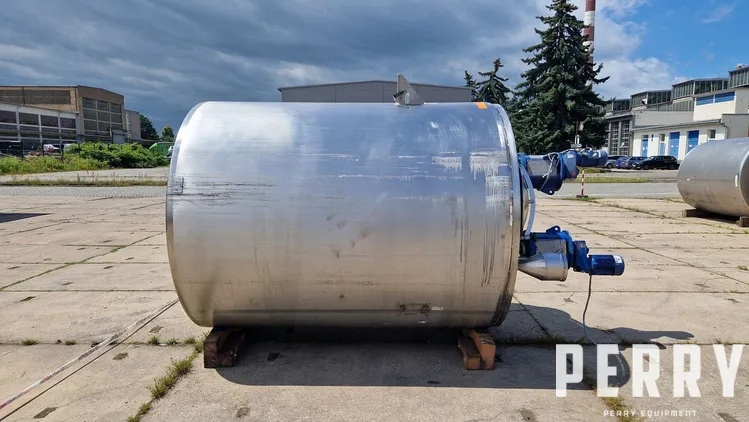

Used Hoeksma & Velt stainless steel vertical mixing tank - volume 6000 liters - construction material AISI 316, insulation cladding AISI 304 - welded dished top and bottom heads - internal rated atmospheric pressure at 90°C max. temperature, - the vessel is insulated - dimensions (approx): 1820 mm inner diameter (1932 mm outer diameter) x 2330 mm straight side x 3650 mm total height - central botom discharge with diameter 50 mm - has (2) top mounted off-centre agitators JONGIA model LBD 60: (1) stainless steel impellor type agitator driven via NORD gearbox by 0.75 kW, 1415 rpm, 50 Hz el. motor, (1) stainless steel double impellor type agitator driven via NORD gearbox by el. motor - lid is equipped with a number of flanges and the inspection hole with a diameter of approx. 500 mm - mounted on (3) lugs
