    3,200 Gallon Stainless Steel Reactor, 100 psi Internal, 60/FV Jacket

    3,200 Gallon Stainless Steel Reactor, 100 psi Internal, 60/FV Jacket

    Have one to sell?
    +44 1325 315 111
    ppel@perryprocess.co.uk
    ConditionUsed
    2 available
    Have one to sell?

    Overview

    Type:
    Reactors & Kettles - Stainless Steel
    Manufacturer:
    MBR
    Model:
    3,200 Gallon
    Stock #:
    ZW63521

    Description

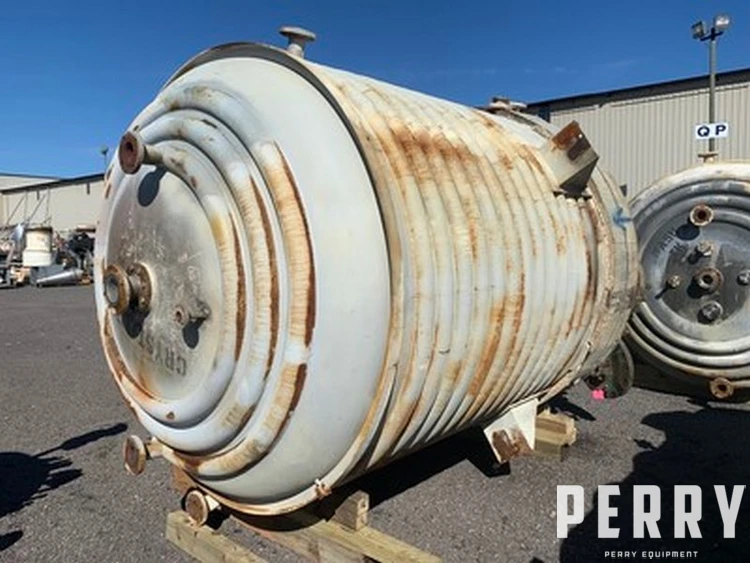

    Used Approximately 3,200 Gallon Stainless Steel Reactor
    Manufacturer: MBR
    Capacity: 3,200 gallons
    Internal pressure: 100 psi @ 400°F
    Jacket pressure: 60/FV @ 350°F
    Dimensions: 7 ft diameter x 9 ft straight side
    Turbine agitator driven by a 7.5 hp motor with mechanical seal
    Additional information: lug mounted, half-pipe coil jacket, welded dished top and bottom, top head is equipped with one manway x 18", and a total of thirteen nozzles: seven x 3", four x 2", and two x 1".

    Capacity (gal/l)3,200 gal12,113.3 L
    Diameter84"2,133.6 mm
    Straight Side108"2,743.2 mm
    Material of constructionStainless SteelStainless Steel
    Type Of Headswelded dish top and bottomwelded dish top and bottom
    Internal Pressure100 PSI6.9 bar
    Jacket Pressure60 PSI4.1 bar
    Internal Temperature400°F204.4°C
    Type of stainlessStainless SteelStainless Steel
    Legs/Lugslug mountedlug mounted
    Dimensions7' dia. x 9' straight side7' dia. x 9' straight side
