Fans CTF100/I Cooling Tower
Have one to sell?
ConditionUsed
1 available

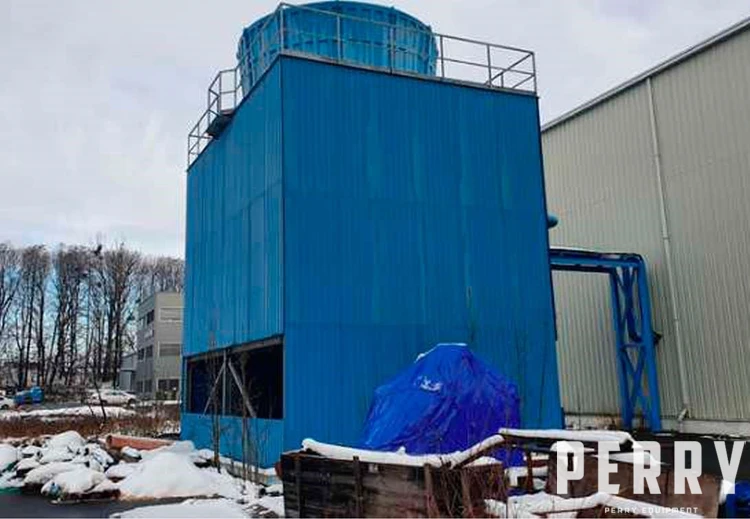

Used Fans a.s. model CTF100/I one-bay mechanical draft cooling tower for cooling water type I. Water flow rate 600 m³/hour, inlet temperature 45 °C, outlet temperature 25 °C, wet bulb 18.2 °C. Equipped with one 5000 mm diameter axial fan impeller with five blades rated at 180 rpm, fan shaft power 66.7 kW, air flow 220 m³/sec, has 12 segments of diffuser, diffuser diameter 5000 mm x 2400 mm height. Cooling tower dimensions (L x W x H): 8440 x 6040 x 8310 mm, empty weight 22,175 kg. Steel structure included. New 2008.
