2,500 Kw 597 Psi Ape Belliss Back Pressure Steam Turbine Generator

Description

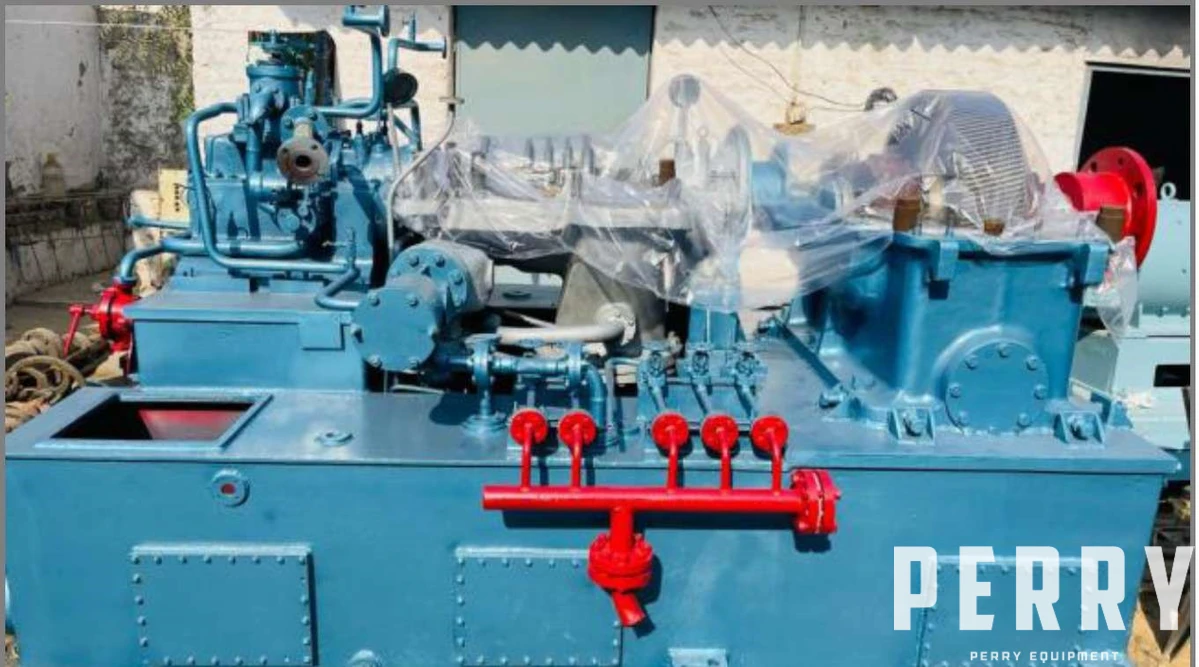

Used APE Belliss (India) back pressure steam turbine generator set rated at 2,500 kW, new in 1993.
Consisting of:
- APE Belliss type HES-14 steam turbine, new in 1993, with inlet steam pressure 40 kg/cm² @ 400 °C / maximum 42 kg/cm² @ 440 °C, and exhaust steam pressure 5 kg/cm² / maximum 7 kg/cm². With Triveni (India) gearbox type HSG-450-91/4, new in 1993, input speed 10,250 rpm and output speed 1,500 rpm. Both mounted on baseframe.
- Kirloskar Electric Co. Ltd alternator, new in 1994, capacity 3,125 kVA voltage 420 V 3-phase 50 Hz, mounted on baseframe,
- Alternator cooler, oil filters and coolers, U-bends, valves, AVR panel.
Exclusions: Low-speed coupling, alternator control panel, etc.
More details upon request.
