GEA Niro Reverse Osmosis Filtration System

Description

Used/Rebuilt GEA Niro Reverse Osmosis Filtration System
316 stainless steel contacts.
Feed flow rate: 62.50 gpm
Permeate flow rate: 56.25 gpm
Concentrate flow rate: 6.25 gpm

Includes:
- Feed balance tank
- Prefilter
- 25 HP Fristam feed pump
- Sunflo P2 100 HP high-pressure feed pump
- (44) 4-element membrane housings with model 8040 thin-film composite membranes and 13,400 square feet of filtration area
- (4) Fristam 25 HP recirculation pumps for constant cross-flow conditions

Also includes concentrate section, a permeate section with balance tank and a Fristam 7.5 HP transfer pump, and a complete CIP system with all controls, instrumentation, new inverters, piping, and valving.

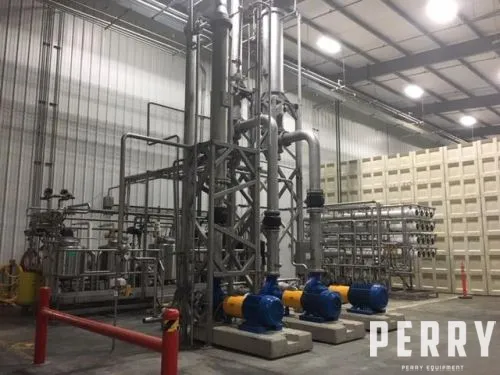

Originally designed in 2002 for concentrating tomato juice. Transferred in 2007 for dried fruit juices and concentrates. Rebuilt, installed, and never redeployed. Still installed. Details and documentation available.
