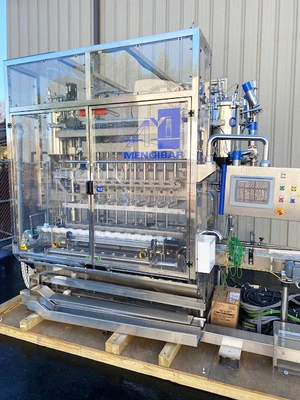

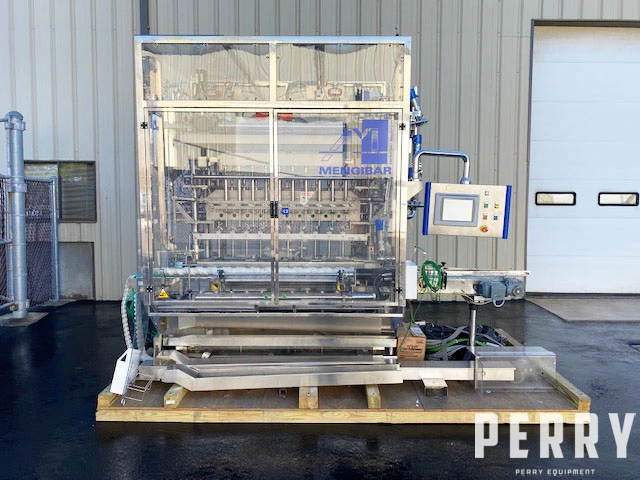

Mengibar 10-Head Inline Piston Swirl Filling Machine

Description

Used Mengibar model/order number 3-12001 10-head inline piston multi-stream swirl filling machine.
Manufacturer: Antonio Mengibar S.A., Spain
10-Head Inline Piston Filler
Multi-stream swirl filling for cosmetic products
The Swirl series filler features multi-stream technology that combines the ability to control the product flow of multiple product streams with the handling of both the product and bottle to create multiple artistic patterns of different products and colours.
Swirl filling has become a popular choice with leading cosmetics and personal care manufacturers.
Patented design capable of 3D patterns with absolute control of bottle, product and filling nozzle – stainless steel construction.
Clear Lexan safety interlocking doors.
3.25” wide x 180” long stainless steel powered conveyor.
Plastic tabletop conveyor belt.
Conveyor elevation 36” (adjustable).
Four stainless steel threaded leveller legs.
Allen Bradley Logix5561 controller.
Allen Bradley PanelView Plus 1000 touch screen.
Allen Bradley Kinetix 6000 Servo drives.
Allen Bradley PowerFlex 40 variable speed drives.
Electrical: 460 volts, 3-phase, 60 Hz, 29.5 amps, 24 VDC control.
Overall filler dimensions: 180” long x 64” wide x 108” high.
Overall product pump dimensions: 55” long x 46” wide x 74” high.
