9500 kW 850 PSI Murray (Dresser-Rand) Steam Turbine

Description

Steam turbine:
Manufacturer: Murray (Dresser-Rand)
Rating: 9,500 kW
Rating with zero extraction: 6,500 kW
Inlet steam: 850 psig / 750 °F
Extraction steam: 125 psig
Extraction steam flow: 0 to 50,000 lb/hr
Maximum inlet steam flow: 120,000 lbs/hr
Maximum exhaust flow: 75,000 lbs/hr
Number of stages: 9
Speed: 4,711 rpm
Inlet steam flange: 6" side
Exhaust flange: 48" top
Control: Woodward 505E

Gear reducer: Lufkin 4,700 to 1,800 rpm

Generator:
Manufacturer: Ideal
Rating: 11,177 kVA
kW: 9,500
Power factor: 0.85
Type: Tewac
Exciter: Brushless 25 kW

Year built: 2001
Last year run: 2008

Scope of supply:
- Steam turbine generator skid
- Lube oil system

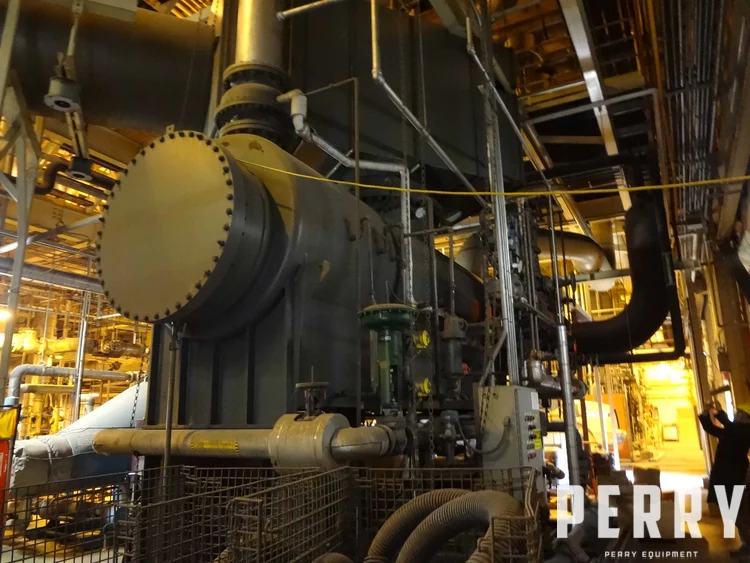

- Condenser
- Air ejector and turbine control panel

Excluded: cooling tower, generator control panel and breakers
