75 HP Myers Model HV550/800AH-30-75-75 Tri Shaft Vacuum Mixer

Description

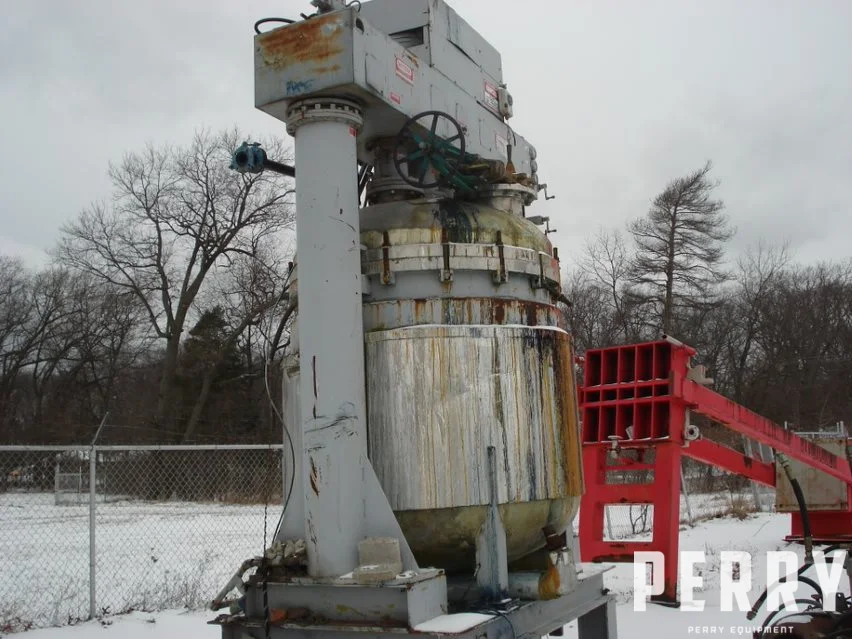

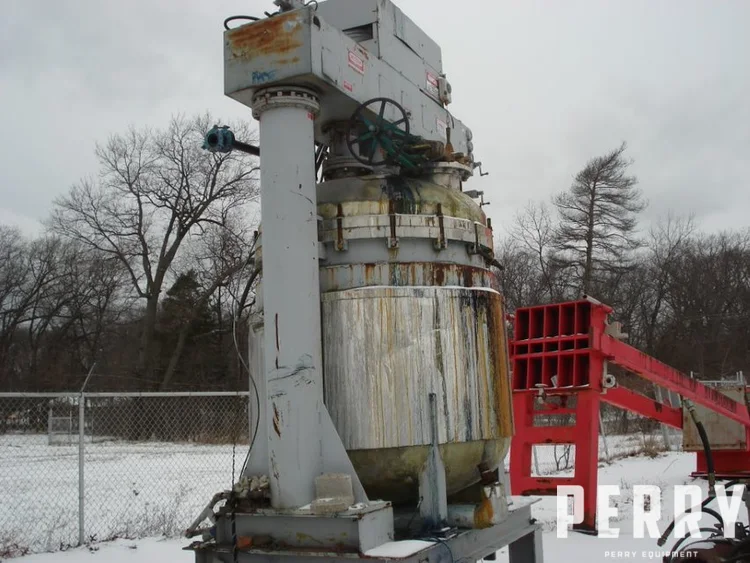

Used Myers tri-shaft vacuum mixer, model HV550/800AH-30-75-75, stainless steel shaft and blades with 75 hp high-speed disperser blade, 75 hp second high-speed disperser blade, slow-speed anchor agitator with bottom and sidewall scraper driven by 30 hp motor. Unit is hydraulically driven with two 75 hp 230/460 volt and one 30 hp 230/460 volt hydraulic power packs. Approximately 60" diameter x 48" straight side, dish bottom tank rated at 50 psi and full vacuum at 280°F internal, jacketed for 50 psi at 280°F, air-over-oil hydraulic lift with air tank. Vessel certified by Royal Welding Fabricators, serial no. 10445, national board no. 227, Myers serial no. 1214, built 1994.
