    1,600 Gallon 316 Stainless Steel Reactor, 60 psi Internal, 80 psi Jacket

    1,600 Gallon 316 Stainless Steel Reactor, 60 psi Internal, 80 psi Jacket

    Have one to sell?
    +44 1325 315 111
    ppel@perryprocess.co.uk
    ConditionUsed
    2 available
    Have one to sell?

    Overview

    Type:
    Reactors & Kettles - Stainless Steel
    Manufacturer:
    GUNTHARD
    Model:
    1,600 Gallon
    Stock #:
    ZG48613

    Description

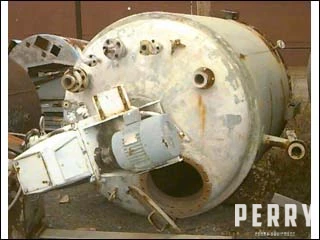

    Used Approximately 1,600 Gallon 316 Stainless Steel Reactor
    Manufacturer: Gunthard
    Capacity: 1,600 gallons
    Internal pressure: 60 psi @ 270°F
    Jacket pressure: 80 psi @ 330°F
    Lightnin agitator driven by a 7.5 hp motor
    Dimensions: 6 ft dia. x 7 ft 2 in straight side
    Additional information: National Board stamped, mechanical seal, 20 in manway, (2) 4 in, (2) 3 in, (1) 2 in, (2) 1.5 in, (3) 1 in, (1) ¾ in top nozzles, 3 in and 5 in bottom outlets, on legs.

    Capacity (gal/l)1,600 gal6,056.7 L
    Diameter72"1,828.8 mm
    Straight Side86"2,184.4 mm
    Material of constructionStainless SteelStainless Steel
    Internal Pressure60 PSI4.1 bar
    Jacket Pressure80 PSI5.5 bar
    Internal Temperature270°F132.2°C
    Type of stainless316316
    Legs/Lugson legson legs
    Dimensions6' dia. x 7'2" straight side6' dia. x 7'2" straight side
