    2,500 Litre FV/6.6 Bar Internal, FV/6.6 Bar Jacket Pfaudler AE2500 Glass Lined Reactor

    2,500 Litre FV/6.6 Bar Internal, FV/6.6 Bar Jacket Pfaudler AE2500 Glass Lined Reactor

    Have one to sell?
    +44 1325 315 111
    ppel@perryprocess.co.uk
    ConditionUsed
    1 available
    Have one to sell?

    Overview

    Type:
    Reactors - Glass Lined
    Manufacturer:
    Pfaudler
    Model:
    AE2500
    Stock #:
    VL1454-05

    Description

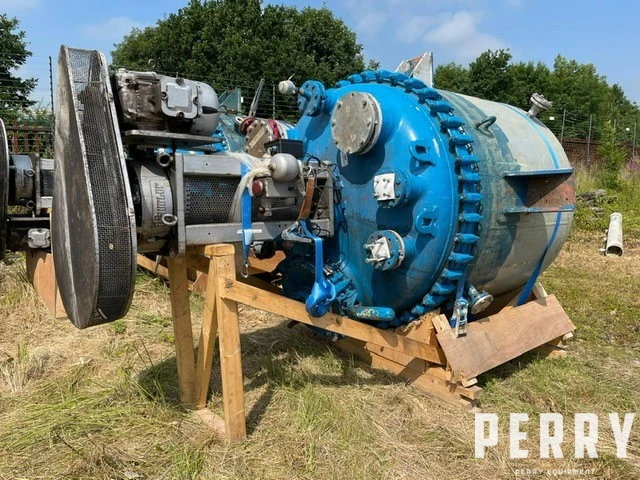

    Used Pfaudler AE2500, approximately 2,500 litre working capacity vertical glass-lined reactor. Unit has clamped dished top and welded dished bottom heads. Internal rated 6.6 bar/full vacuum design pressure at -29 to 200 °C. External mild steel jacket rated 6.6 bar/full vacuum design pressure at -29 to 200 °C. Unit has top-entry glass-lined anchor agitator driven by a 0.55–5.5 kW 415 volt 147–1470 rpm 3-phase 50 Hz motor via a gearbox.

    Capacity (gal/l)660.4 gal2,500 L
    Material of constructionGlass LinedGlass Lined
    Internal pressure95.8 PSI6.6 bar
    Jacket pressure95.762795.7627
