• Equipment
    Mixers
    Mixer Powder Ribbon
    2744 Litre - 18.5 Kw - Gardner Stainless Steel Ribbon Mixer

    2744 Litre - 18.5 Kw - Gardner Stainless Steel Ribbon Mixer

    Have one to sell?
    +44 1325 315 111
    ppel@perryprocess.co.uk
    ConditionUsed
    1 available
    Have one to sell?

    Overview

    Type:
    Mixer Powder Ribbon
    Manufacturer:
    GARDNER
    Model:
    2,187 LITRE
    Stock #:
    VB0135-01

    Description

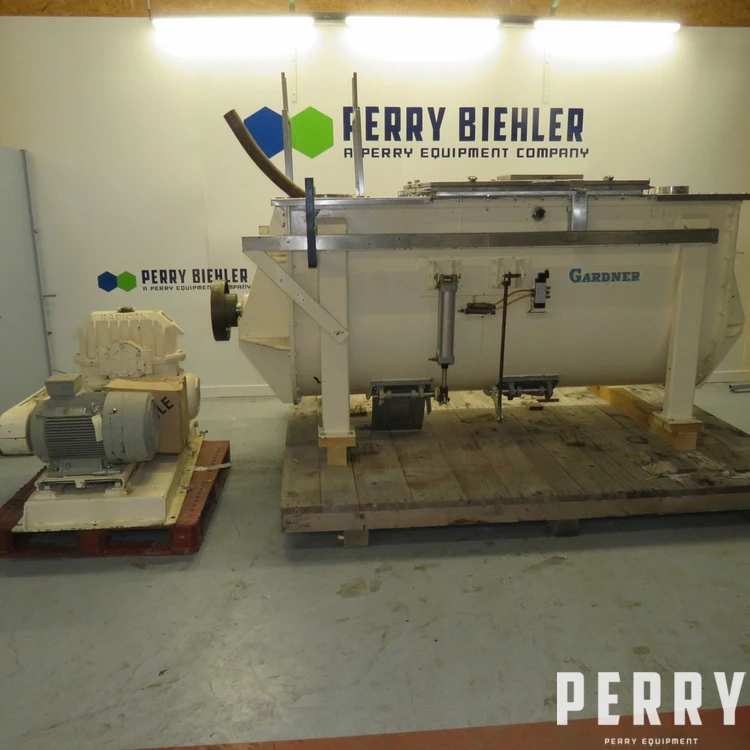

    Used GARDNER stainless steel ribbon mixer. Capacity of approximately 2,178 litres and a total capacity of approximately 2,744 litres. The U-shaped stainless steel chamber is approximately 2438 mm long, 1067 mm wide and 1170 mm deep. The unit has a single stainless steel shaft with a single ribbon interposed, driven by an 18.5 kW, 3-phase 415 volt motor via a David Brown Radicon gearbox, with an output speed of approximately 37 rpm. Includes lower outlets but no valves are fitted.

    Capacity77 ft³2,180,395.1 cm³
    Material of constructionStainless SteelStainless Steel
    Width42"1,066.8 mm
    Horsepower24.8 hp18.5 kW
    Length96"2,438.4 mm
    JacketNoNo
    Dimensions2438 mm x 1067 mm x 1170 mm2438 mm x 1067 mm x 1170 mm
