700 L Used Vertical Stainless Steel Mixing Tank

Description

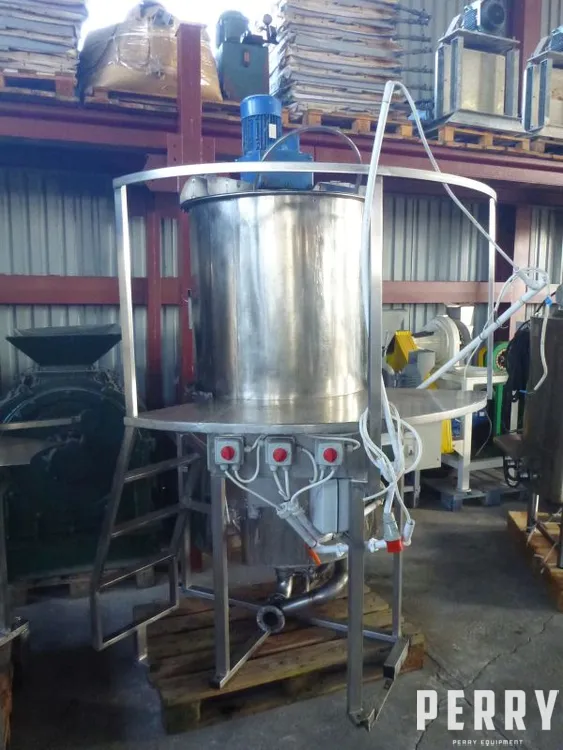

Used vertical stainless steel mixing tank with a total volume of 700 litres. The tank has an internal diameter of 795 mm and a straight wall length of 1400 mm. The top of the tank has a bolted cover, the bottom is ellipsoidal with a central discharge outlet, equipped with a manually operated valve. A top-mounted paddle-type agitator with welded spiral wires is driven by an electric motor rated 2.4/2 kW, 2830/1400 rpm, 400 V, 50 Hz, and a gearbox. The working rotation speed of the agitator is 31/15 rpm. The bottom part of the tank is insulated and lined with stainless steel and equipped with electric heaters mounted on the side walls. The tank is mounted on a stainless steel supporting frame with stairs and a working platform. Last used in the food industry.
