Used Stainless Steel Piston Depositor Apple International Model MR900

Description

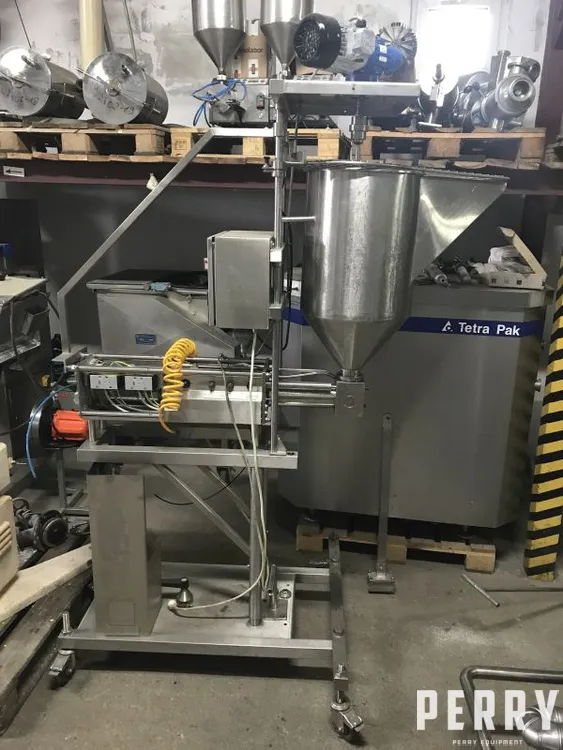

Used stainless steel pneumatic piston depositor by Apple International (UK), model MR900. The machine can be used for filling dense substances such as batters, grease, jams, pastes, etc. The working dose is adjustable and can be set within the range of 20 to 1250 g. The operating speed is up to 60 cycles per minute. The machine features a stainless steel feeding chute with a volume of approximately 70 litres. The chute has a conical bottom with a discharge outlet diameter of 70 mm, and there is also a vertical ribbon agitator, driven from the top by a gearbox and an electric motor rated at 0.37 kW, 1400 rpm, 230/400 V, 50 Hz, Ex design (Ex II 3G Ex n A II C T4/T3 Gc). Compressed air consumption is up to 400 litres per minute at 5.5 bar. The machine is mounted on a stainless steel mobile frame. Includes a pallet with additional parts. Last used in the food industry.
