1850 L Vertical Stainless Steel 316 Silos For Powders

Description

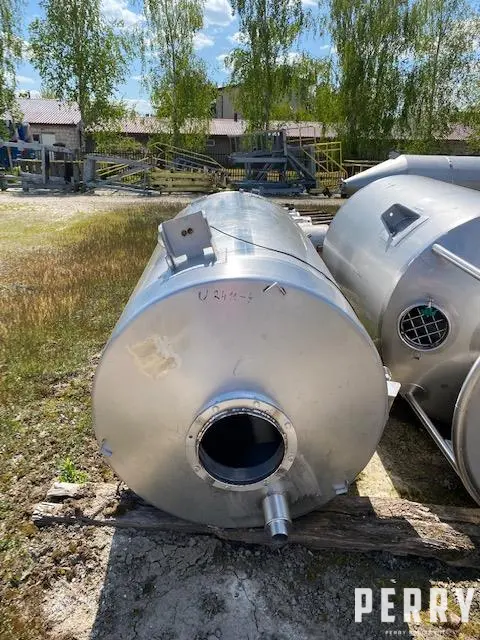

Used vertical stainless steel AISI 316 silos by AUSTENIT SZTAJERWALD (Poland) with a total capacity of 1850 litres. Working volume is 1700 litres. The tank has an internal diameter of 1080 mm and a length of straight wall of 1750 mm. The welded top is equipped with a central inlet with a diameter of 290 mm and one connection. The welded conical bottom is 800 mm high and has a central discharge outlet with a manually operated butterfly valve by WAMGROUP with an internal diameter of 145 mm. Four nozzles are fitted in the conical bottom for blowing off the cone from the inside. The silo is mounted on three lugs with weight sensors (controller is not included).
