810 L Vertical Stainless Steel 316 Silos For Powders Slanted To One Side

Description

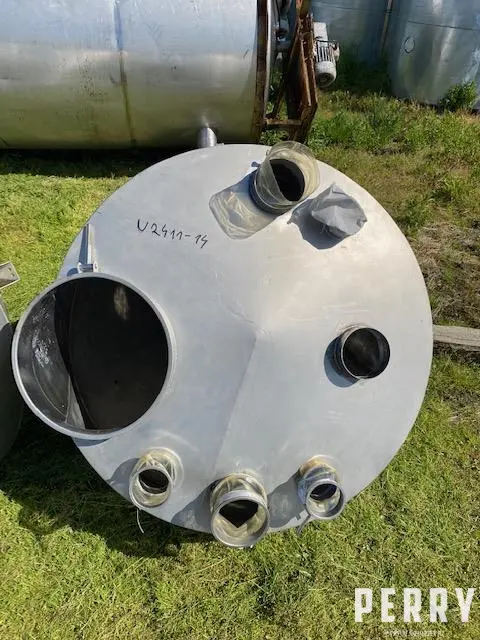

Used vertical stainless steel AISI 316 silos with a total capacity of 810 litres. The tank has an internal diameter of 1200 mm and a straight wall length of 300 mm. The welded conical bottom, sloping to one side, is 1250 mm high and has a central discharge outlet with an internal diameter of 200 mm. Three nozzles for blowing off the cone from the inside are fitted in the conical bottom. The top is welded and fitted with an inspection manhole—without a cover—measuring 440 mm in diameter, and six connections (3 x 150 mm and 3 x 100 mm). The tank is mounted on three lugs.
