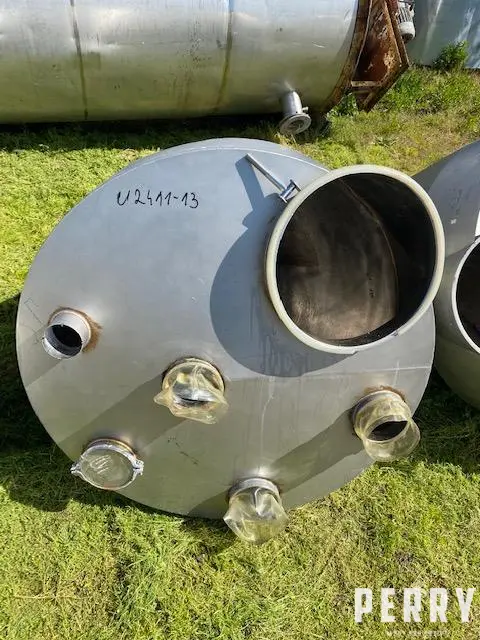

Used vertical stainless steel AISI 316 silos with a total capacity of 810 litres. The tank has an internal diameter of 1200 mm and a length of straight side wall of 300 mm. The welded conical bottom, slanted to one side, is 1250 mm high and has a central discharge outlet with an internal diameter of 200 mm. Three nozzles are fitted in the conical bottom for blowing off the cone from the inside. The top is welded and equipped with an inspection manhole without a cover, with a diameter of 440 mm, and five connections (4 x 150 mm and 1 x 100 mm). The tank is mounted on three lugs.
