400 MM Diameter x 2700 MM Length Stainless Steel Screw Conveyer

Description

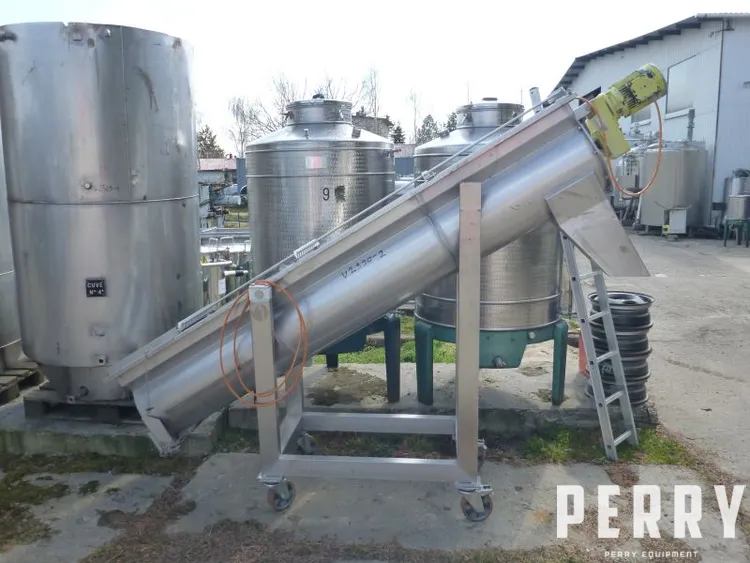

Used stainless steel conveyor type "O". Top open, equipped with bolted safety bars. Screw has a diameter of 400 mm and a lead of 145 mm. Working length 270 cm. Screw is driven from the top by an electric motor 1.1 kW, 1420 rpm, 230-400 V, 50 Hz, and gearbox. Working screw rotation up to 50 rpm. Conveyor has an inlet with dimensions W 340 mm x L 460 mm. Feeding height is 83 cm. Discharge outlet has dimensions 300 mm x 200 mm and is at a height of 125.5 cm. Conveyor is mounted on a mobile stainless steel supporting frame. Last used in the food industry.
