2800 L Vertical Stainless Steel Mixing Tank With Insulation

Description

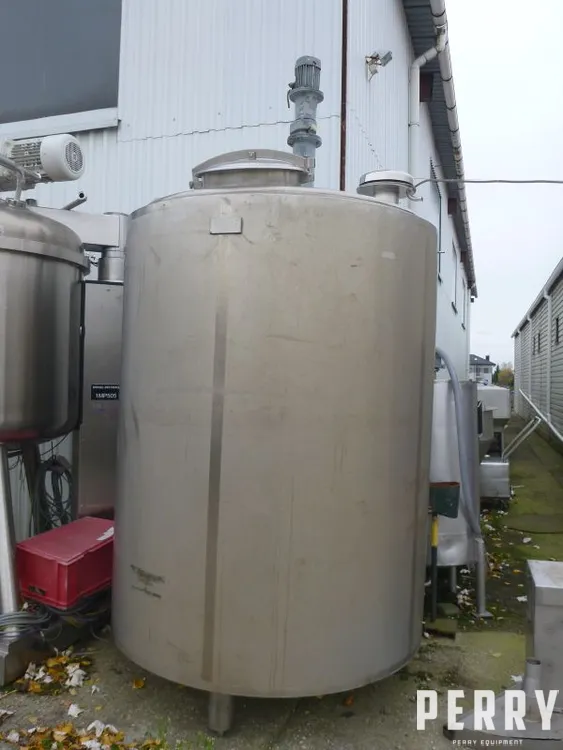

Used vertical stainless steel mixing tank with a total volume of 2800 litres. The tank has internal dimensions: diameter 147 cm x length of straight side of wall 170 cm. The tank has a flat bottom, with a side wall discharge outlet. The bottom and side walls are layered with thermal insulation. The top is welded and has an inspection manway with a diameter of 450 mm and a stainless steel lid. The tank is equipped with a four-paddle agitator, driven via a gearbox (reduction ratio i = 3.93) and an electric motor 0.75 kW, 1410 rpm, 220-380 V, 50 Hz. Working rotation of agitator is about 358 rpm. The tank is mounted on 3 stainless steel legs. Last used in the food industry.
