Used vertical mixing tank with a total volume of 80 litres and a working volume of about 60 litres. The tank has an internal diameter of 495 mm and a length of the straight side of the wall of 460 mm. The top is bolted with a stainless steel cover, which is half open. The tank is equipped with a propeller-type agitator driven directly by an electric motor, 0.2 kW, 900 rpm, 220/380 V, 50 Hz, Ex design (Ex-d IP45). Discharge outlet on the side wall, with a manually operated valve. The tank has a carbon steel heating jacket with two electrical heaters and a control panel in Ex design. The heating jacket has perforations. Mounted on three carbon steel legs with wheels.

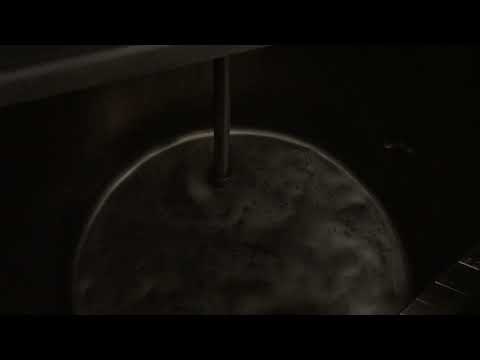

Click on the link below to see a video of the machine running.
