11 kW stainless steel contact parts vertical paddle agitator.Ex design

Description

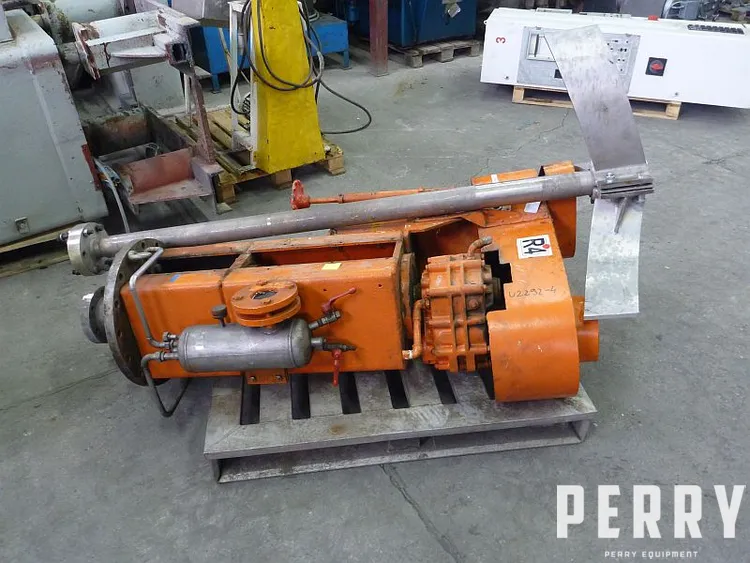

Used stainless steel contact parts paddle agitator. Shaft has a diameter of 80 mm and a total length of 219 cm from stainless steel mounting flange. Working length of the shaft is 200 cm and the shaft is bolted with 6 bolts. Agitator has three paddles bolted to the shaft. Diameter of paddles is 95 cm. Agitator is belt-driven by an electric motor 11 kW, 1450 rpm, 220/380 V, 50 Hz, in Ex design EE x d II BT4. Manual adjustment of the working rotation of the agitator via speed variator. Mounting flange has a diameter of 510 mm with 16 holes, each with a diameter of 20 mm. Holes are located at 470 mm distance from the centre of the flange. There is also mechanical sealing of the shaft on the flange.
