Potato Fry, Batter & Drying System with Capacity Approximately 15 Tons/Hour

Description

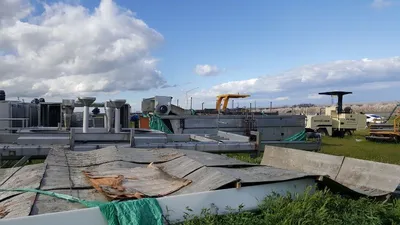

Used continuous potato fry/batter and drying system made in 2008 and with only 18 months of use.

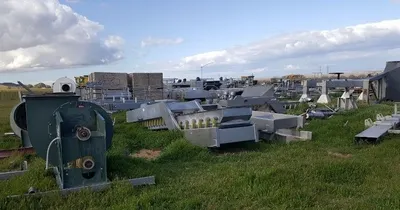

System includes the following major items:
- GEM Equipment 2-stage continuous batter/fryer system made in 2008 and rated up to 15 tons/hour.
- National dryer rated for approximately 4-5 TPH (OEM added more heat sections to dryer to make it approximately 11-12 TPH).

More Information

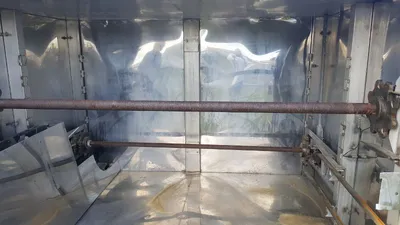

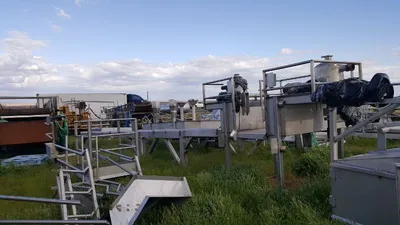

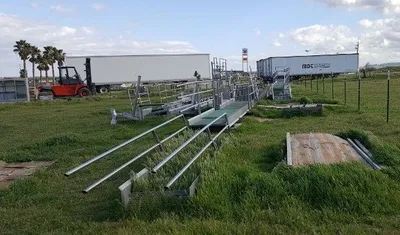

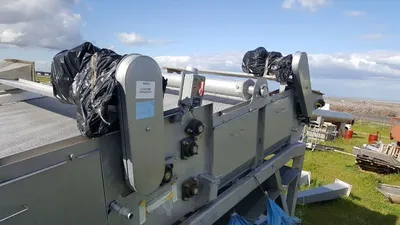

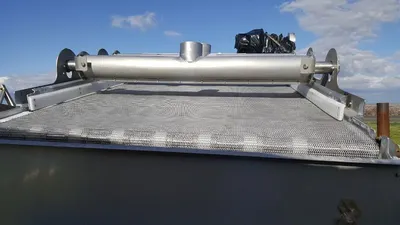

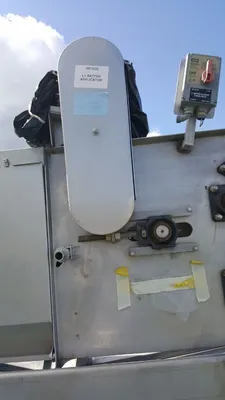

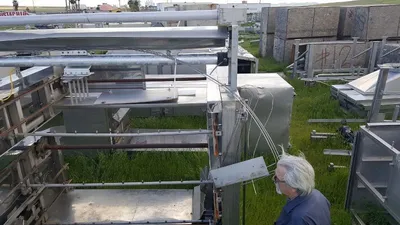

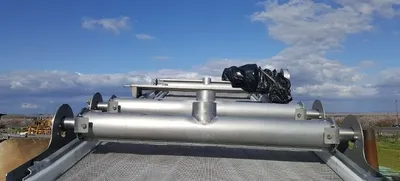

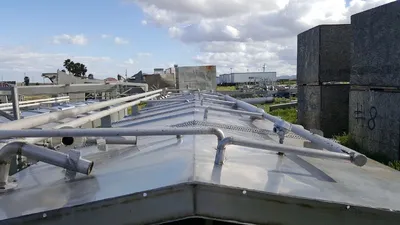

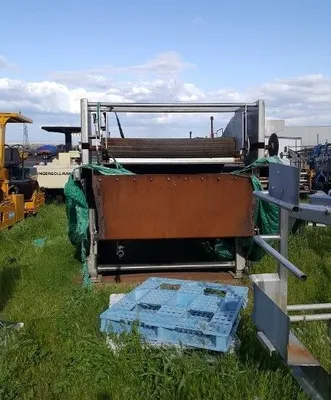

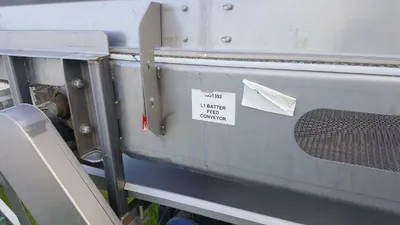

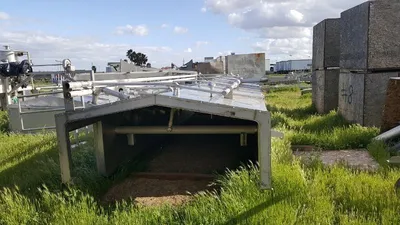

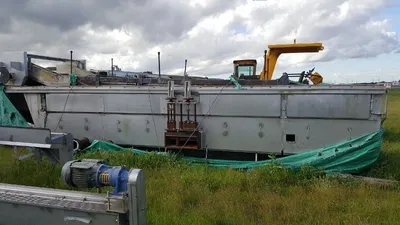

- GEM Equipment two-stage continuous fryer/batterer for potatoes, rated for up to 15 tons/hr. Stage-one measures 5' wide X 12' long x 5" cook depth; stage-two measures 5' wide X 16' long x 5" cook depth. Stage-one includes Harris Thermal 4-pass, 11,000,000 BTU/hr, hot oil heater, Cornell Model number 6RB-F18K centrifugal pump, rated for 2,400 GPM, driven by 100 HP motor & Lakos 8" Model CSX-1450-HL filter. Stage-two includes Harris Thermal 4-pass, 10,000,000 BTU/hr, hot oil heater, Cornell Model number 6RB-F18K centrifugal pump, rated for 2,200 GPM, driven by 100 HP motor & Lakos 8" CSX-1450L filter. Also includes batter applicator with 5' wide X 10-1/2' long belt and two air knives. Complete with catwalk & stairs, associated drives, duct work, controls, etc. Fryer was previously fed by apron/belt dryer. Previously used to process sweet potato fries.

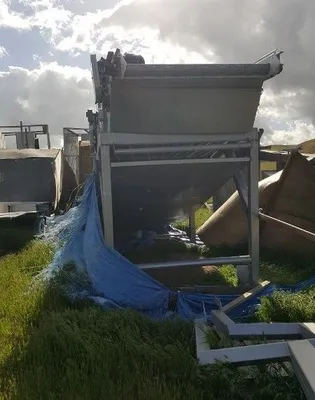

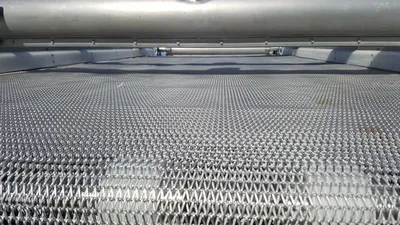

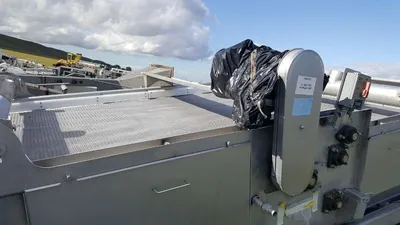

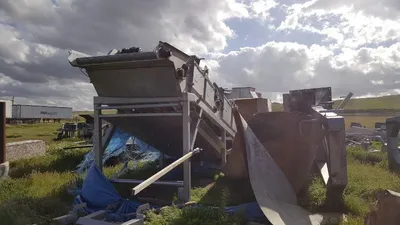

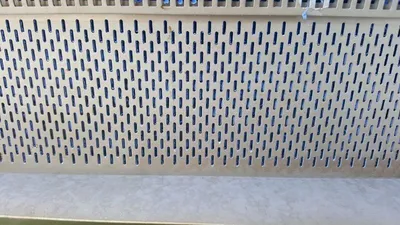

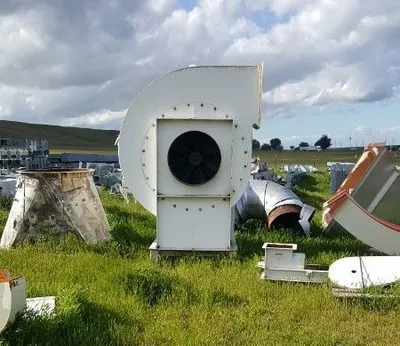

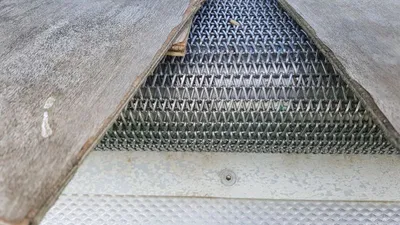

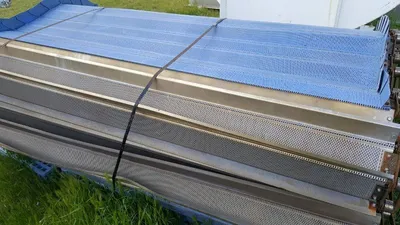

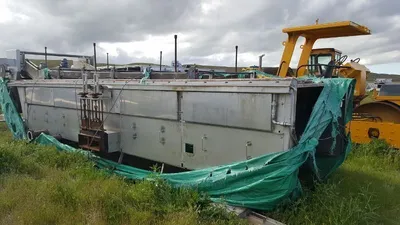

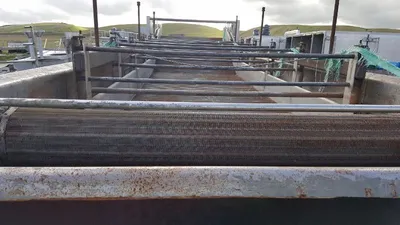

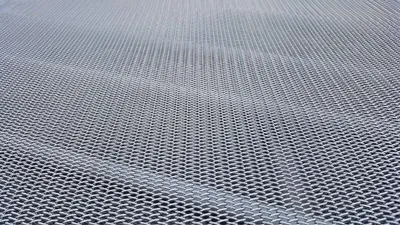

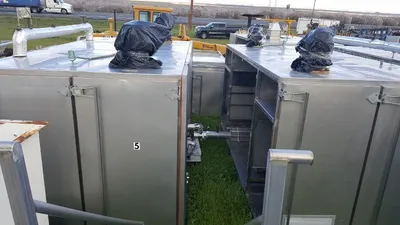

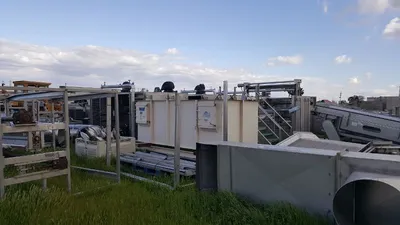

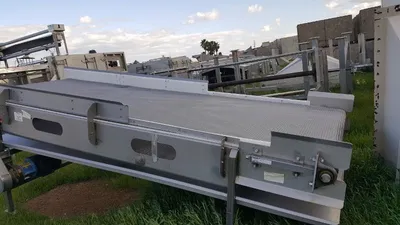

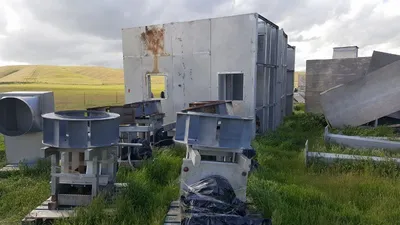

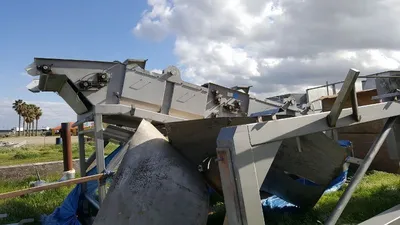

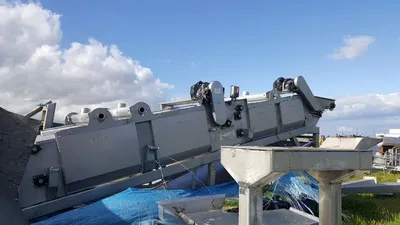

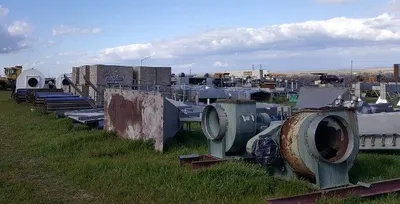

- National Drying Machinery apron dryer, belt measures 8' wide X 45' long, multistage design. First two passes heat product (2-zone forced air dryer) and final pass acts as equilibration/tempering zone. Dryer is steam heated. All stainless-steel construction, including belt, frame, legs and doors. Belt includes 1/8" diameter perforations. Offered with dewatering vibratory feed shaker and 8-1/2' wide X 20' long discharge conveyor with wire mesh belt. Complete with catwalk & stairs, all associated drives, fans, controls, etc. Designed for approximately 4 - 5 tons/hr. Previously used to process sweet potato fries prior to feeding into fryer.

Last used on sweet potato fries.
