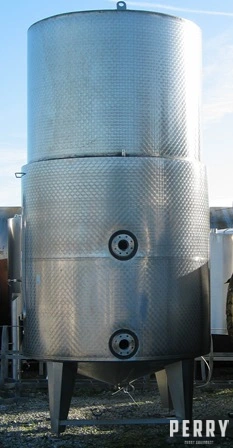

12,000 Litre Stainless Steel Vertical Storage Vessel, 1980mm Dia x 3570mm Straight Side

Description

Used approximately Moeschle Behälterbau GmbH 12,000 litres stainless steel 304 vertical storage vessel. Vessel diameter: 1980 mm. Vessel length / depth on straight side: 3570 mm. End configuration and depth: Fully welded top and bottom dishes 300 mm DEEP. Supports: 4 rectangular section welded stainless steel legs 190 mm WIDE with screw feet. Approximately 400 mm ground clearance.

Connections and manways:
TOP: 1 x 10 mm flanged, 1 x 75 mm RJT connections
Side: 340 mm x 440 mm oval manway with hinged door and strap to lower side. 1 x 32 mm BSP socket to upper side. 1 x 38 mm BSP socket to mid-side. 2 x 10 mm flanged, 1 x 50 mm IDF male, 1 x 18 mm BSP socket, 2 x threaded probe sockets to lower side.
Base: 1 x 50 mm RJT male, 1 x 100 mm internal overflow outlet, 1 x threaded probe connection.
Operating pressure: Atmospheric.
Other information: 2 top lifting eyes. Serial number: 21542. Base and 2050 mm of lower side have “double skin” of insulation / still air jacket. Not for heating / cooling.
