600 Litre Engelsmann Model KSM 600-14541-ST 37/GM Stainless Steel Nauta Vertical Cone Mixer

Description

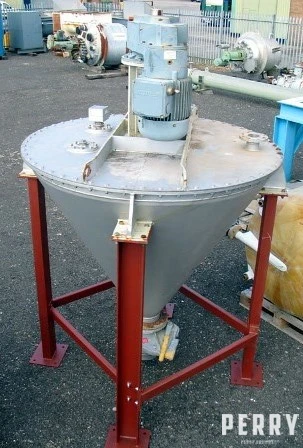

Used Engelsmann model KSM 600-14541-st 37/gm 600 litre (21.2 ft³) stainless steel 321 (1.4541) Nauta type vertical cone mixer. Unit includes: bolt-on/off top cover, 7.5 kW drive unit, packed gland, spiral ribbon blade, centre bottom outlet slide valve. Vessel measures: top diameter 1.7 m, bottom diameter 200 mm, vertical height 1.475 m plus 900 mm for drive unit. Openings at top: 2 × 80 mm, 1 × 90 mm, 1 × 240 mm diameter product inlet. Centre bottom product discharge outlet 200 mm diameter. Material thickness: cone 4.0 mm, top cover 8.0 mm. Unit supported in a carbon steel box frame on 4 × side brackets/lugs positioned approximately 1.45 m above lower face of discharge valve.
