    10,000 Litre De Dietrich Model CE10000 Vertical Glass Lined Reactor

    10,000 Litre De Dietrich Model CE10000 Vertical Glass Lined Reactor

    Have one to sell?
    +44 1325 315 111
    ppel@perryprocess.co.uk
    ConditionUsed
    Have one to sell?

    Overview

    Type:
    Reactors - Glass Lined
    Manufacturer:
    DE DIETRICH
    Model:
    CE10000
    Stock #:
    L1465-04
    Country:
    United Kingdom

    Description

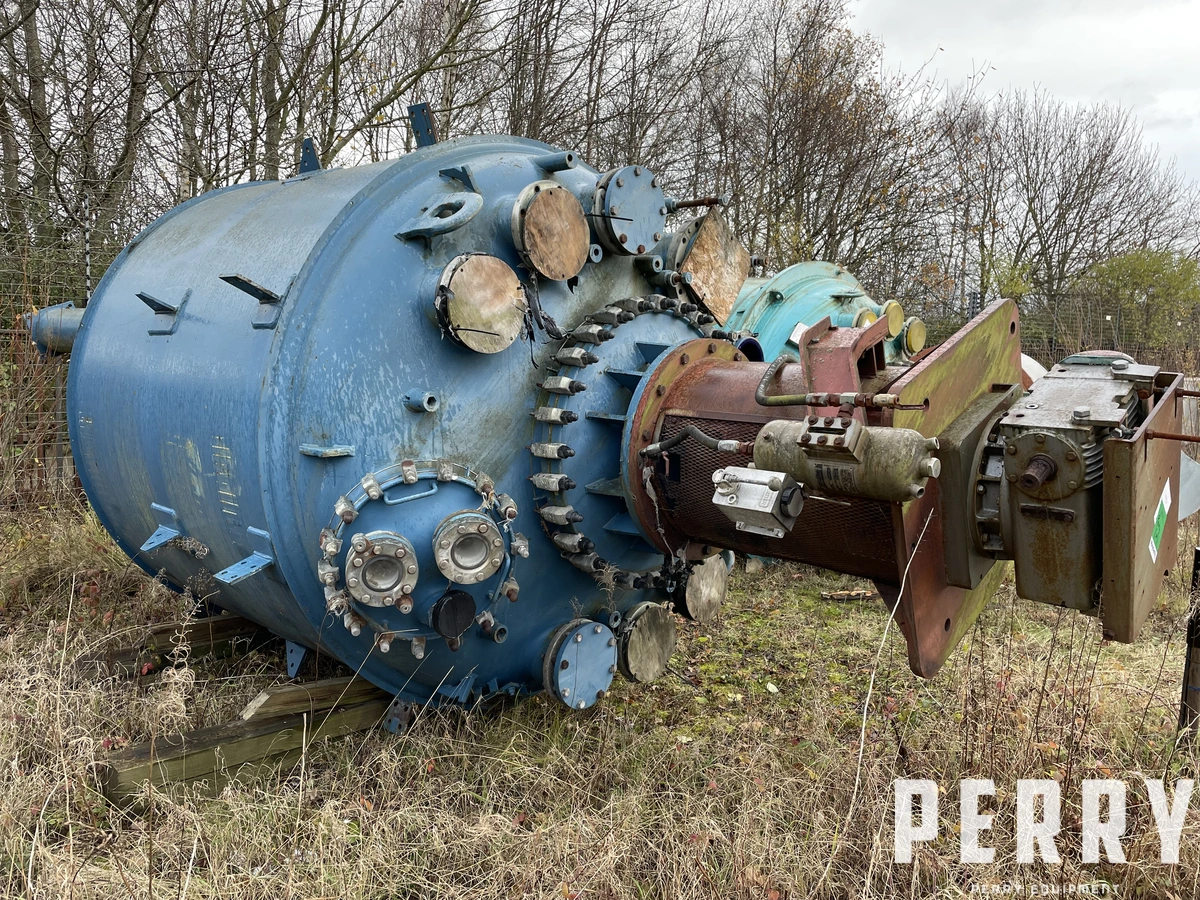

    Used DeDietrich model CE10000 vertical glass-lined reactor. Approximately 10,000 litre working capacity and 11,710 litre total capacity. Internally rated for 6 bar/full vacuum design pressure at -25 to 200 °C. External mild steel jacket rated for 6 bar/full vacuum design pressure at -25 to 200 °C. Unit has welded dished top and bottom heads. Top entry 3-blade retreat curve agitator with drive. Unit is mounted on four legs.

    Capacity (gal/l)2,641.7 gal10,000 L
    Material of constructionGlass lined, External mild steel jacketGlass lined, External mild steel jacket
    Internal pressure87 PSI6 bar
    Jacket pressure8787
    Legs/lugs44
