120 Litre Giusti, 1.38 Bar Internal, 3.45 Bar Jacket, 316 Stainless Steel Vessel, Used Refurbished

Description

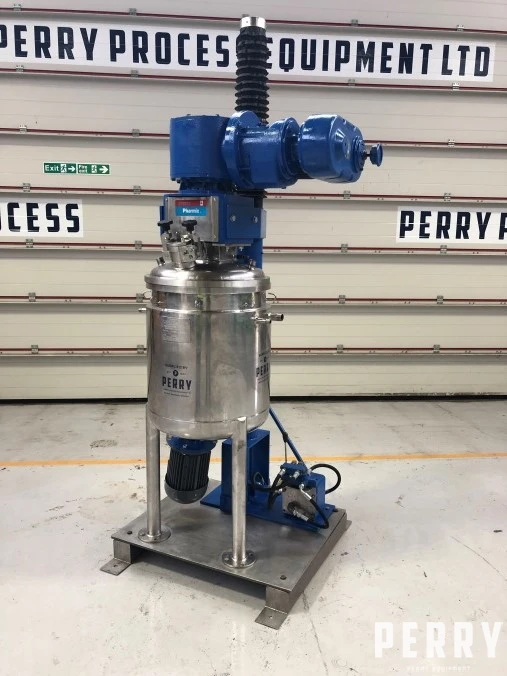

Used refurbished Giusti model Pharmix 120 litre capacity 316 stainless steel jacketed process vessel. Internal dimensions approximately 510mm diameter x 585mm straight side. Features clamped dished top and welded dished bottom heads. Internally rated for full vacuum/1.38 bar working pressure. Has 321 stainless steel external jacket rated for 3.45 bar working pressure. Vertical agitator with PTFE wall scraper blades, direct-driven by a 1.1 kW, 415 volt, 3 phase, 50 Hz, 1420 rpm motor via Supaflex enclosed VS drive rated 600–3000 rpm and Electro power gears type ESRV2 gearbox with a 34.1 reduction ratio. Bottom entry homogeniser direct-driven by a pole-changing 2-speed 3.7/4.4 kW, 400 volt, 3 phase, 50 Hz, 1425/2890 rpm motor. Mounted on a stand with hand hydraulic lift to raise and lower the top dished head. Has approximately 38mm (1.5") centre bottom discharge with valve. Designed for producing liquids, creams and semi-solids under sterile conditions.
