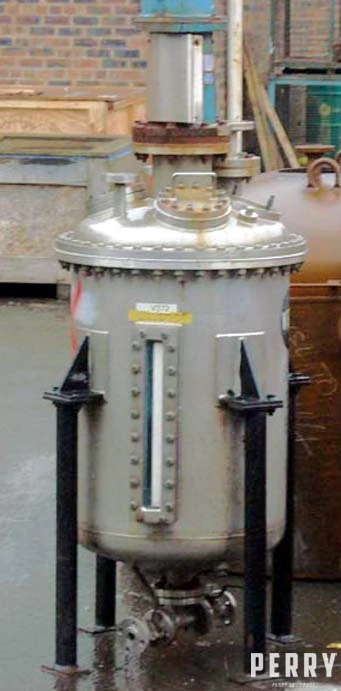

Used approximately 250 litre stainless steel vertical vessel. Stainless steel 316 (1.4401) vertical liquid storage tank / receiver with bolted dish top and welded dish bottom, 460 x 50mm sight / level glass on straight side. Rated 2.8 bar. Vessel measures 0.6 m diameter x 0.78 m height + 100 mm for bottom dish and 150 mm for top dish + flanges. Openings on top dish: 2 x 25 mm, 1 x 75 mm, 1 x 150 mm flanges, 1 x 150 mm pad, 1 x 200 mm pad, 1 x 100 mm sight glass; centre bottom outlet: 50 mm. Unit supported / mounted by 4 x side brackets / lugs positioned approximately 370 mm from top dish split line, lower face of brackets with bolt-on/off pipe legs giving approximately 180 mm floor clearance from underside of bottom outlet.
