1,300 Litre, 2.41 Bar Jacket, 316L Stainless Steel Reactor

Description

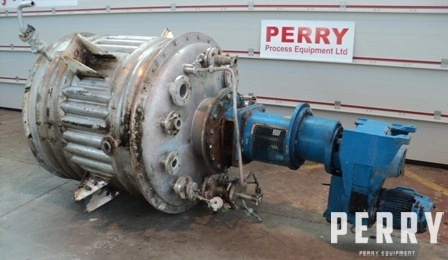

Used SSV Ltd approximately 1,300 litre 316L stainless steel vertical reactor. Internal dimensions approximately 1180 mm diameter x 1100 mm straight side. Features a bolted dished top and welded conical bottom heads. Internally rated for atmospheric pressure (10.2 cm water gauge) design pressure at 50°C. Equipped with an external limpet coil jacket rated for 2.41 bar design pressure at 138°C. Includes a top-mounted stainless steel two-tier, four-blade pitched paddle type agitator driven by a 4 kW, 415 volt, 3-phase, 50 Hz, 1440 rpm variable speed motor via a Chemineer model 435-3302 gearbox at 20–20 rpm. Also includes four baffles. Mounted on four lugs.
