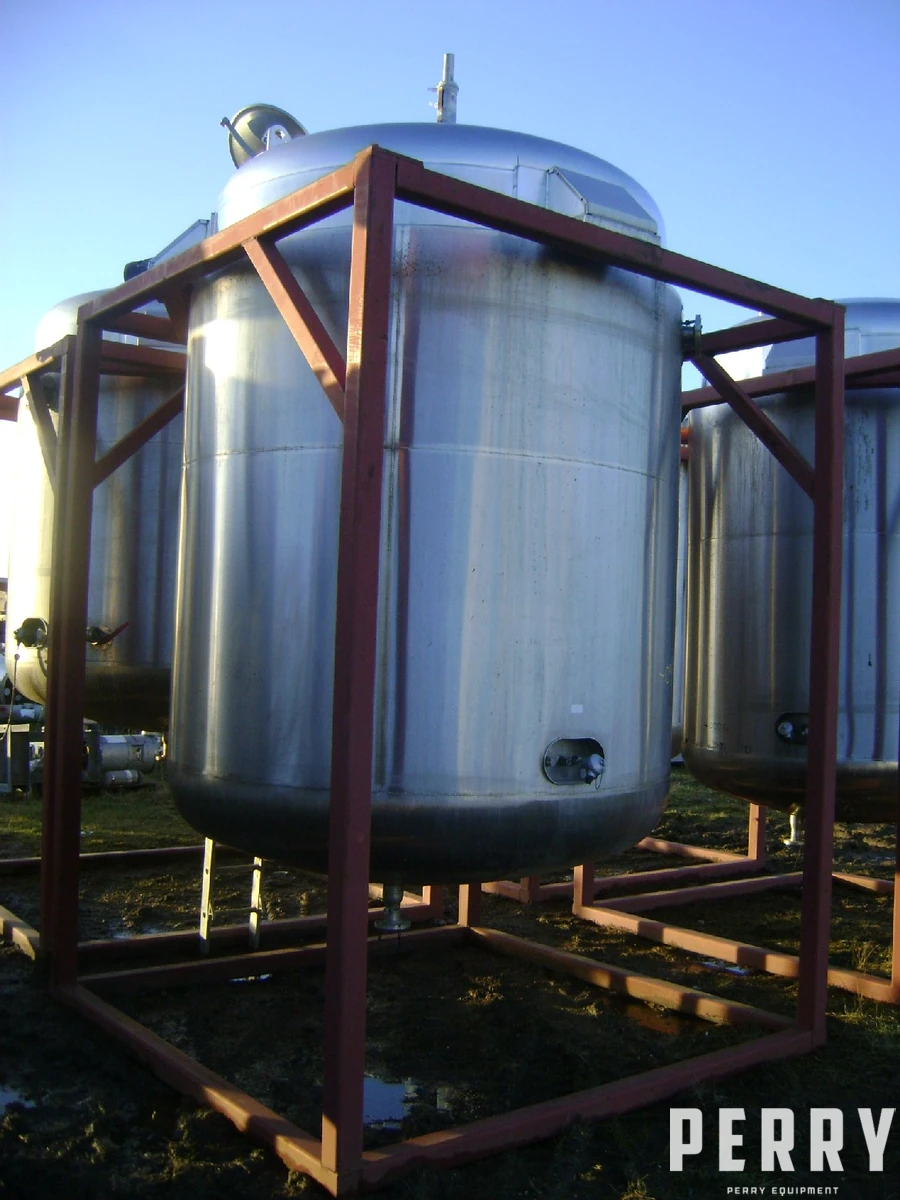

9,727 Litre Websters Stainless Steel Vertical Jacketed Contra-Rotating Mixing Vessel, 2000mm Dia x 2380mm Straight Side

Description

Used Websters approximately 7,410 litre working capacity and 9,727 litre total capacity 316 stainless steel vertical jacketed contra-rotating mixing vessel. Unit measures approximately 2000 mm diameter × 2360 mm straight side. Unit has welded dished top and bottom heads. Internal rated atmospheric pressure at 150 °C. External jacket rated 10.34 bar design pressure both at 150 °C design temperature. Features a stainless steel anchor-type scraped wall agitator with contra-rotating 2-tier 4-blade pitched paddle type agitator driven by 2 top-mounted 6.8 kW, 415 volt, 15 amp, 142–1420 rpm motors through gearboxes. Unit is mounted on a frame.
