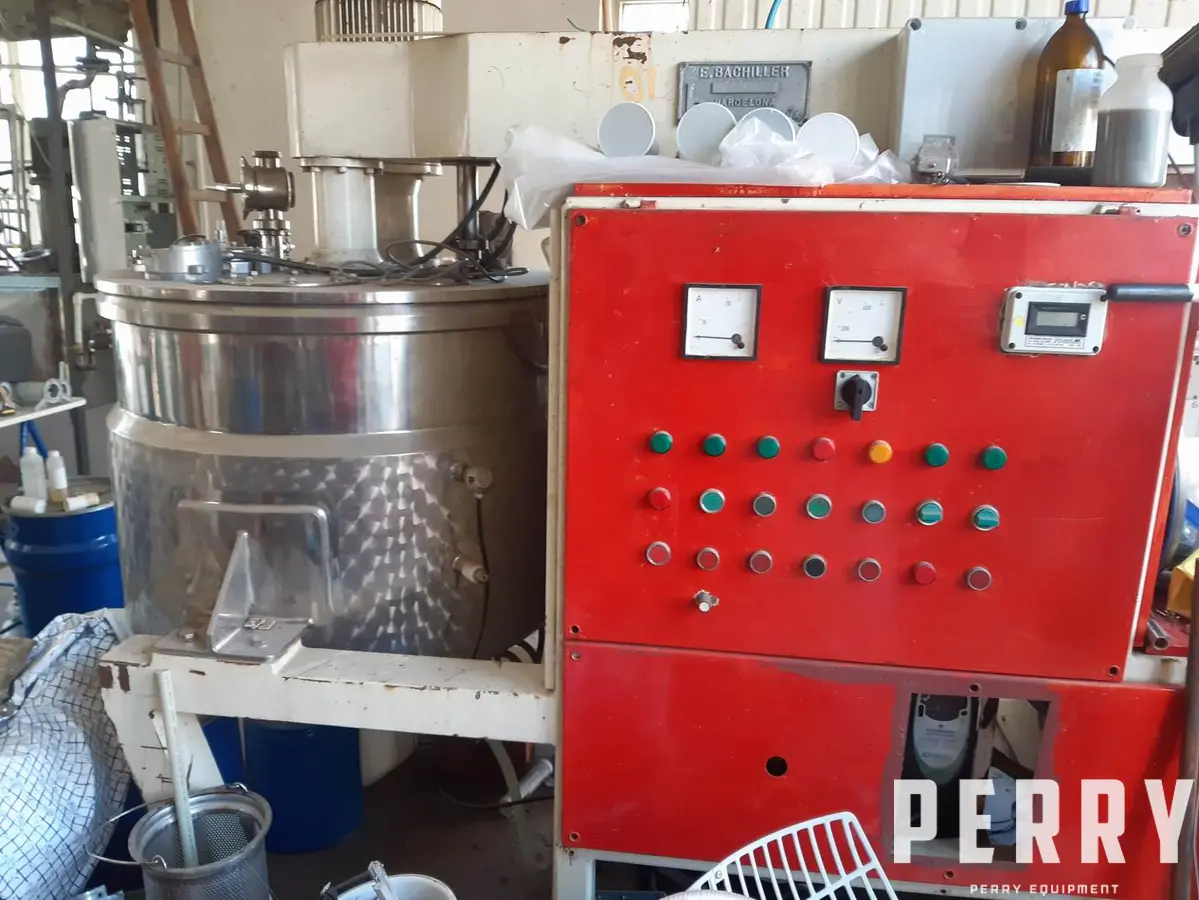

200 Litre Bachiler Model PC-200 Stainless Steel Jacketed Mixer/Homogenizer

Description

Used Bachiller model PC-200 stainless steel vacuum mixer. 338 litre total capacity, 126–200 litre working capacity. Mixing bowl approximately 866 mm diameter × 650 mm straight side. Flat top and inverted dished bottom rated for full vacuum. Stainless steel jacket rated to 3 bar pressure. Anchor agitator with Teflon scrapers driven by 2.2 kW 220/380 volt 3-phase 50 Hz 1415 rpm or 2.55 kW 440 volt 3-phase 60 Hz 1715 rpm motor through Sabre model MAS55DF gearbox with 69:1 reduction ratio. Approximately 220 mm diameter dispersion blade mixer direct driven by 7.5 kW 380 volt 3-phase 50 Hz 1450 rpm or 8.6 kW 440 volt 3-phase 60 Hz 1755 rpm motor. Lid raised and lowered by 0.55 kW 220/380 volt 3-phase 50 Hz 1400 rpm or 0.63 kW 440 volt 3-phase 60 Hz 1695 rpm hydraulic power pack. New 1987.
