Hosokawa Model M502NC Super Micron Mill

Description

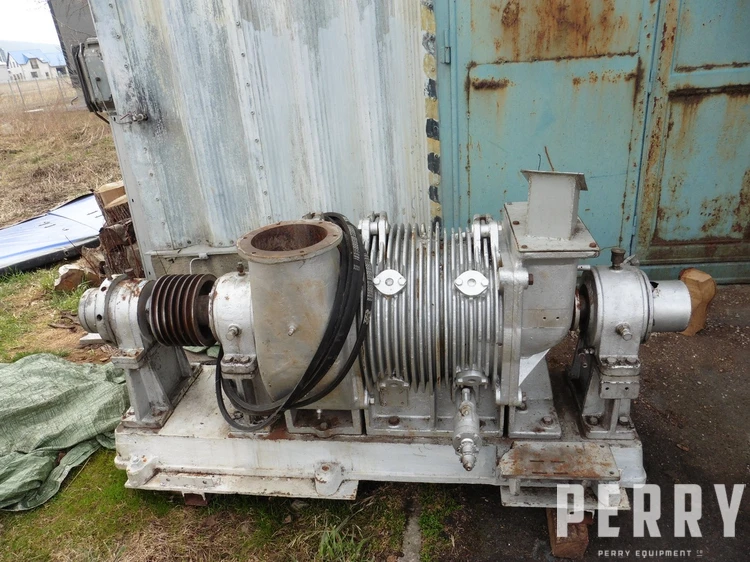

Used Hosokawa model M502NC super micron mill for ultra-fine grinding of powders to a fineness below 40 microns. There are no screens or sifting grates. The mill uses a combination of attrition, friction, shearing and impact in a two-stage grinding process. It has two rotors – one with straight blades and one with bevelled blades. The inlet has internal dimensions of approximately 380 mm x 160 mm, and the outlet has an internal diameter of approximately 210 mm. Total dimensions are approximately 2200 mm x 900 mm x 1100 mm in height. Motors are missing.
