600 Litre PERRYmix HV600 304 Stainless Steel Mixer, New

Description

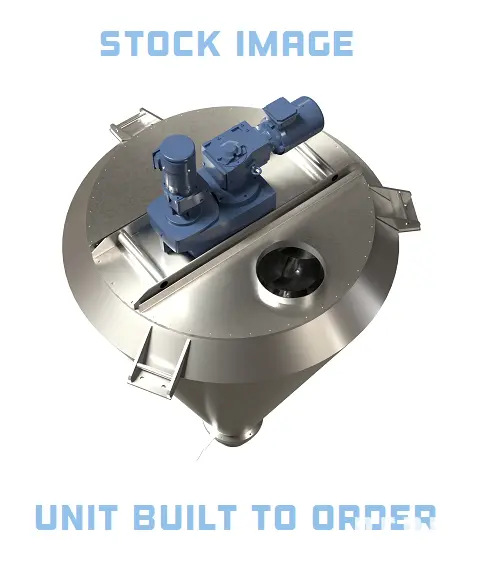

New PERRYmix (Czech Republic) model HV 600 stainless steel (AISI 304) product contact parts Conical mixer. Effective volume 600 litres, cone 1418 mm diameter x 1955 mm height, total height of the machine (bottom edge of the conical hopper to top edge of electric motor cover) 2835 mm. Round feeding inlet diameter 300 mm with cover. Standard mixing screw diameter 310 mm, top driven through Nord gearbox by 3/400 V/50 Hz/1.5 kW electric motor and supported by bottom pintle bearing (hard metal). Screw speed 60 rpm. Stainless steel arm top driven through secondary Nord gearbox by 3/400 V/50 Hz/0.25 kW electric motor. Arm speed 2 rpm. Manually operated rotary slide outlet valve with conical discharge hopper. Mounted on three legs.
