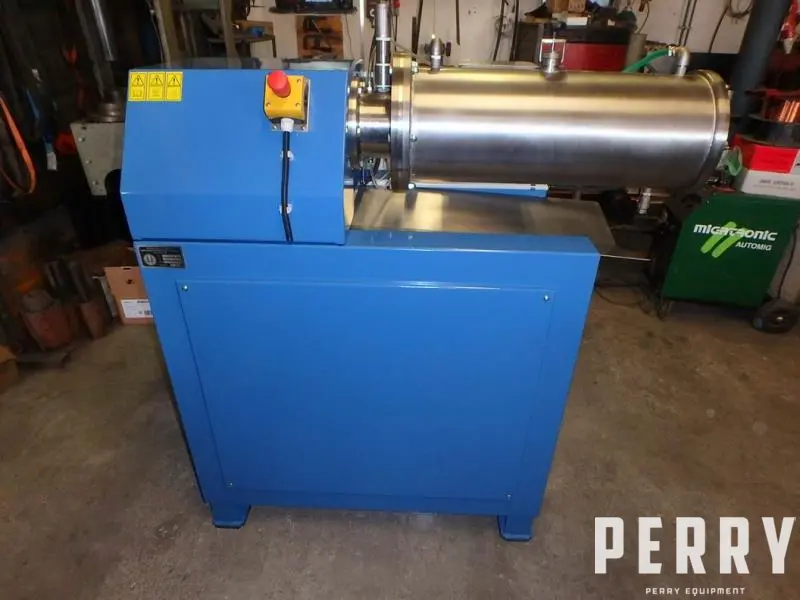

New PERRYmix model PD25-Z stainless steel horizontal bead mill. Stainless steel (AISI 304) jacketed milling chamber with a capacity of 25 litres, measuring 232 mm diameter by 690 mm length internally. Stainless steel shaft with eight polyurethane discs, diameter 185 mm, driven by an electric motor 22.0 kW/400 V/50 Hz/IP55. Fixed shaft speed of 1,100 rpm and fitted with a water-cooled mechanical seal. Screen type for milling bead separation. Equipped with integrated electric switchboard and operating panel on the machine. Includes variable speed gear pump.
